TECHNICAL SPECIFICATION
| Item Name | Unit | ND-ICE-SR-C200 | ND-ICE-SR-E800W | ND-ICE-SR-E800FB |
|---|---|---|---|---|
| Sweeping path | mm | > 1300 | 1900 | 1900 |
| Cleaning efficiency (approx) | m²/h | 6700-7000 | 11000 - 12000 | 12000 - 13000 |
| Max climbing capacity | % | 20 | 25 | 25 |
| Main brush length | mm | 700 | 800 | 800 |
| Side Brush Diameter | mm | 500 | 500 | 500 |
| Power supply | V | 48 | 48 | 48 |
| Battery | V/Ah | 48V(12V*4pieces*100AH) | 48V(8V*6pieces*150Ah) | 48V(8V*6pieces*200Ah) |
| Charging time | (Single Phase 230V/16Amp MCB) | 7-8hrs | 7-9hrs | 7-9 |
| Battery backup | hrs | 4-5 | 6-7 | 7-8 |
| Power Consuption | V/Ah | 48V*100Ah | 48V*150Ah | 48V*200Ah |
| Waste hopper capacity | L | 130 | 180 | 180 |
| Water Tank (PVC Body) | ltr | 30 | 100 | |
| Driving power | W | 1200 | 3000 | 3000 |
| Working Power Main Brush + Fan + Side Brush + Dust Vibration | W | 600+400+80*2+50 | 800+400+80*2+50 | 800+400+80*2+50 |
| Working speed | Km/h | 6 | 7 | 5 - 7 |
| Driving speed | Km/h | 8 | 9.8 | 9.8 |
| Filter area | m2 | 5 | 5 | 8 |
| Turning radius | mm | 1000(spot turn) | 1200 (Spot Turn) | 1200 (Spot Turn) |
| Dimension (L/W/H) | m | 1.6*1.3*1.4 | 2150*1900*2040 | 2150*1900*2040 |
| Net weight | Kg | 460 | 800 | 900 |
| Chassis | One Press Forming | One Press Forming | One Press Forming | |
| Cleaning efficiency factors: Floor type and ground flatness, dust type, operator training and proficiency of operator, machine maintenance, brush touch ground adjustment, dust vibration cleaning, brush cleaning, filter cleaning always help to get more output. | ||||
| Optional Water Tank Capacity | ltr | 20 | ||
DESCRIPTION
NIDO ride on sweeper is suitable for cleaning large warehouses, parking lots etc. When conducting cleaning and sweeping, it can automatically adjust the lifting of brush handle. Two side brushes can collect the waste to the middle position and main brush will collect it to the waste hopper. The brushes can be controlled up and down manually as well. Enlarged filter that can clean up dust perfectly.
FEATURES

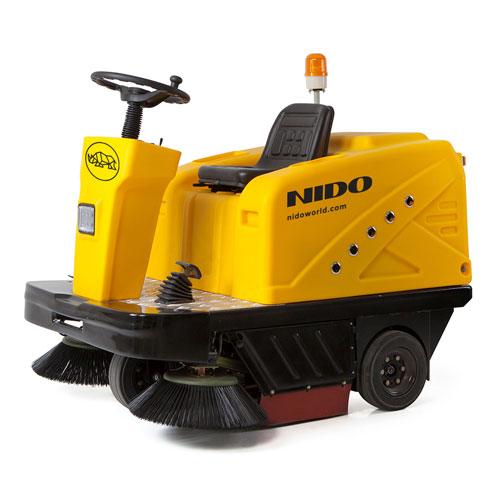

ND – ICE – SR – C200

- CE certified, battery operated ride on sweeper
- Double brush with sweeping width of 1250 mm
- High capacity and maintenance free batteries, no leakage, no harmful gases
- Convenient hopper system for manual emptying

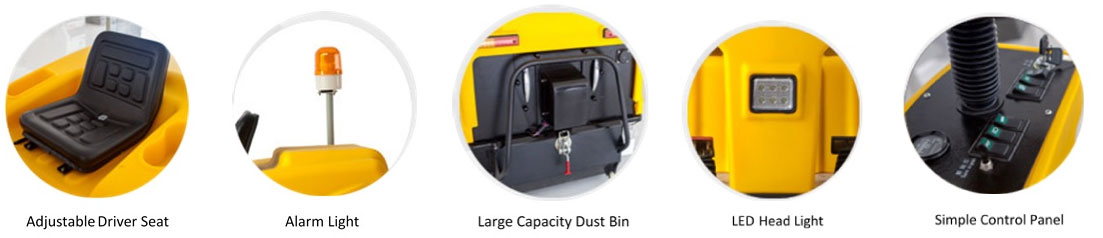

- LED headlights, warning lights, Large dust filter screen
- Filter vibration system to maintain cleanliness of filters
- Low failure rate for best import quality and reliability and economic operation
- Easy access for maintenance and adjustment work
- Steel chassis offers strong bearing capacity
- Durable tyres equipped with brake apparatus
- Easy to disassemble mechanical parts, easy to replace main, side brushes and filters

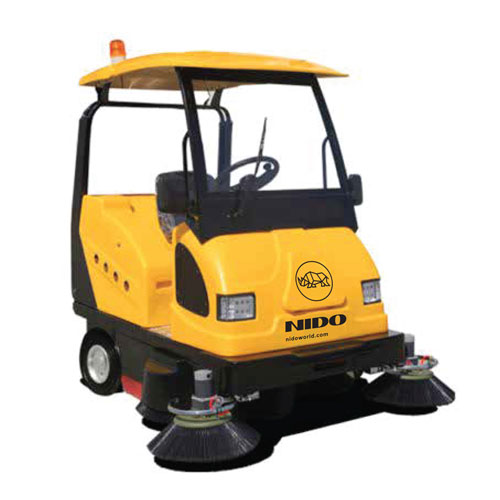

ND – ICE – SR – E 800 W

– Increase the chassis design, flat filter, built-in powerful dust control systems, more powerful vacuum cleaner, sweeping width of up to 1850mm.
– The use of advanced high-performance maintenance-free batteries, no leaking, can’t produce harmful gases.
– As the international advanced technology of thrown & clean, the dust box can achieve to 100% utilization.
– Reliable high-quality components reduce maintenance and repair costs.
– Solid tire, airport-specific, and durable.
– High-quality electronic control system, over current, under voltage protection, more secure.

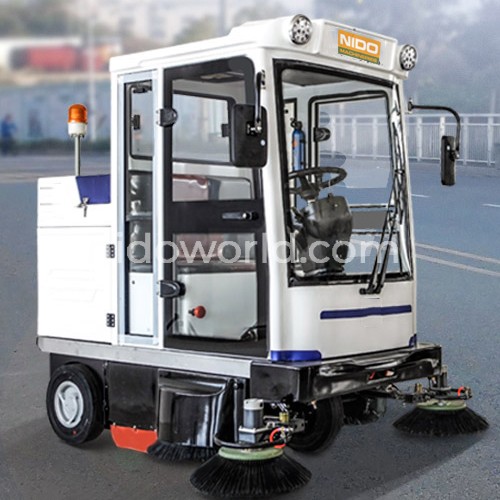

ND – ICE – SR – E800FB

- CE certified, battery operated sweeper
- Removable double door
- Three levels of filtering system
- Advanced extra-large filtration system offers large filtration area, and stronger vacuuming
ability - 100 ltr water tank capacity, largest of its kind
- Enclosed cabin provides safety from any external interference
- Safe and comfortable operating for operator
- Features 48V, maintenance free battery, longer continuous use
- Environmentally friendly
- Reliable power supply as key connectors are retardant and waterproof
- Main brush motor features rare earth motor with long life, stable performance
- High speed adjustment precision, smooth running
- Highly manoeuvrable, shot wheelbase chassis and compact design
- Optional PFC charger
