DESCRIPTION

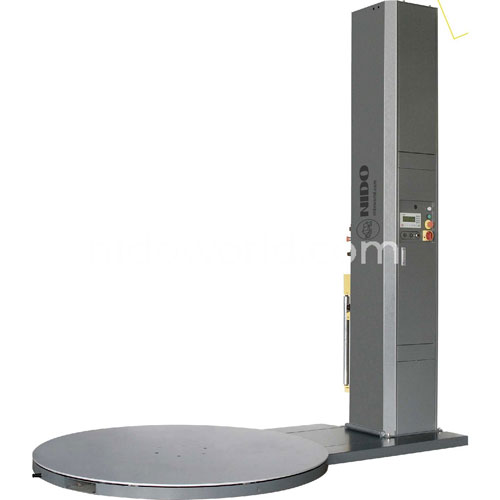

Nido Pallet Stretch Wrapping machines wraps the Pallets and make them moisture-proof at minimum cost. Optimum usage of wrapping of roll is made possible by “Powered Pre-Stretch Unit” which can stretch the film up to 200% (One meter long becomes approximately 3 meters long). Powered Pre-Stretch unit has a separate motor to stretch the film. These machines are extremely user-friendly and can be used in every situation. The programs are very easy to operate and extremely flexible. All the machines are designed to cope with a high workload. The use of carefully selected components keeps maintenance to a minimum
FEATURES
This simple and sturdy machine can operate continuously under severe industrial environment.
- Automatically connects & breaks the film
- Remote Controlled Operation
- Heavy duty turn table for all industrial applications.
- Sturdy mast and machined guide ways for guiding the stretch unit.
- Suitable for a wide range of stretch film material.
- Modular in construction
- Soft start and soft stop in zero position
TECHNICAL SPECIFICATION
| MODEL | ND-EOLP-ST-JD008 |
|---|---|
| Machine Dimensions | L 950 x W 750 x H 1250 mm |
| Net Weight | 112kg |
| Pallet Size | Width ≤ 2000, Height ≤ 3000 mm |
| Strap Material | PP / PET |
| Strap Thickness | 0.6 to 1.3 mm |
| Strap Width | 12 to 19 mm |
| Applicable Strap Spool | PP Strap (roll core 200MM, roll core height 180MM) PET Strap (roll core 406MM, roll core height 150MM) |
| Charging Time | 2.5 hrs |
| No. of Straps in single charge | Up to 600 nos. depend pallet size |
| Noise Level | 79 dB |
| Triplex full free mast | MFZ16M：4600-9500mm；MFZ16H：4600-10500mm； | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Model | MFZ16 | 16T-46 | 16T-48 | 16T-54 | 16T-57 | 16T-60 | 16T-63 | 16T-65 | 16T-67 | 16T-70 | 16T-71 | 16T-75 | 16T-80 | 16T-85 | 16T-90 |
| Lift height | h3(mm) | 4600 | 4800 | 5400 | 5700 | 6000 | 6300 | 6500 | 6750 | 7000 | 7150 | 7500 | 8000 | 8500 | 9000 |
| Mast extended height with load-backrest | h4(mm)[1] | 5835 | 6035 | 6635 | 6935 | 7235 | 7535 | 7735 | 7985 | 8235 | 8385 | 8735 | 9235 | 9735 | 10235 |
| Mast closed height | h1(mm) | 2253 | 2320 | 2520 | 2620 | 2720 | 2820 | 2887 | 3070 | 3153 | 3202 | 3319 | 3486 | 3653 | 3920 |
| Free lift height(incl.load-backrest) | h2(mm) | 978 | 1045 | 1245 | 1345 | 1445 | 1545 | 1612 | 1795 | 1878 | 1928 | 2044 | 2211 | 2378 | 2645 |
| Free lift height(without load-backrest) | h2(mm) | 1108 | 1176 | 1376 | 1476 | 1576 | 1676 | 1744 | 1926 | 2008 | 2058 | 2172 | 2340 | 2508 | 2876 |
| Characteristics | Manufacturer | NIDO | |
|---|---|---|---|
| Power type | Battery | ||
| Operation type | Seated | ||
| Operation mode | Electric proportional control | ||
| Rated capacity | Q(kg) | 2000 | |
| Load center | C(mm) | 600 | |
| Load Distance, Centre of drive axle to fork | x(mm) | 407 | |
| Front overhang | x1(mm) | 205 | |
| Wheelbase | y(mm) | 1500 | |
| Weight | Service weight(incl. battery) | kg | 4131 |
| Axle load, fork backward, unladen drive side/load side | kg | 2446/1510 | |
| Axle load, fork forward, laden drive side/load side | kg | 730/5226 | |
| Axle load, fork backward, laden drive side/load side | kg | 2196/3761 | |
| Wheel | Wheel type, drive side/load side | Solid PU/Solid PU | |
| Load wheel size | mm | φ343×120 [1] | |
| Drive wheel size | mm | φ343×120 | |
| Number of wheels, front/rear(x=drive wheel) | 2/ 1X | ||
| Wheel tread, load side | b11(mm) | 1170[1] | |
| Function | Driving speed (laden/unladen) | km/h | 14/14 |
| Lifting speed (laden/unladen) | mm/s | 300/500[4] | |
| Lowering speed (laden/unladen) | mm/s | 530/520 | |
| Mast movement speed, forward/backward | mm/s | 200 | |
| Max. gradeability (laden/unladen) | %(tanθ ) | 10 | |
| Braking method | Hydromantic | ||
| Drive | Driving motor power (S2-60min) | kw | 8.0 |
| Lifting motor power (S3-15%) | kw | 12.8[5] | |
| Steering motor power(S2-60min) | kw | 0.4 | |
| Lead acid battery, voltage/capacity | V/Ah | 48/560 | |
| Options: Lithium battery voltage/capacity | V/Ah | 48/460[6] | |
| Battery weight | kg | 920 | |
| Other | Battery replacement method | Front pull | |
| Sound level at driver's ear | dB(A) | 75[7] |
