DESCRIPTION

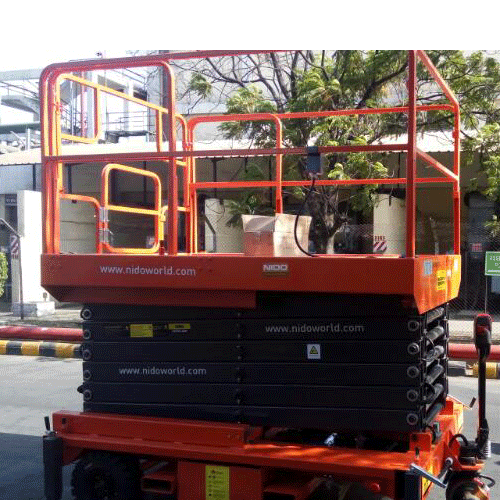

Nido mobile scissor lift adopts scissor type mechanic structure to bring high stability after being elevated. Wide operation platform and high loading ability has made wider aloft work arrange and is suitable for simultaneous multi-worker operation.

MINI MOBILE SCISSOR LIFT

Load capacity: 240 kg, Platform Height: 3.9 mtr, Pedal lock, electric cabinet, foldable platform, emergency stop button, interlock platform door

NIDO mini scissor lift can balance itself and walk on an even keel uneven ground. Mini mobile scissor lifts are also called as mini electric scissor lifts or electric elevated work platform. They are used to provide temporary access to contractors to high, inaccessible areas on a variety of job sites such as maintenance, construction work. They are designed to lift limited weights and capable of being fully operated by a single person. It is unique in carrying capacity and a wide platform that can bring more workers and tool set, whether indoors or outdoors.

Standard Features:

  • DC power supply
  • Battery charge indicator
  • Self-lock gate on platform
  • Leveling indicator
  • Safety bracket-dual locking castors
  • Emergency stop button
  • Emergency lowering system
  • Forklift pockets
  • Folding guardrails
  • Cylinder holding valve
  • Selection switch – top/bottom
  • Emergency stop – protection arm for service
  • Lock for towing handle

Optional Features

  • AC power supply to platform
  • Platform extension
  • Automatic braking system
  • Beacon light on platform
  • Overloading sensor

Battery Charge Indicator

Hour Meter

Foldable Fence

Lifting Hook

Slide Out Tray

Level Gauge

Emergency Stop Button – Platform & Ground

Anti-skid Platform

Interlock Doors on Platform

Forklift Slots

TECHNICAL SPECIFICATION

ModelND-SL-M-0.24-3 DCND-SL-M-0.24-3.9 DC
S.W.L.kg240240
Platform Height Max.mtr33.9
Stowed Lengthmtr1.31.3
Stowed Widthmtr0.760.76
Stowed Height (Rails Up)mtr1.831.92
Stowed Height (Rails Down)mtr1.431.52
Platform Size (L*W)mtr1.15*0.071.15*0.07
Wheelbasemtr0.990.99
Max. Workers Number11
Ground Clearancemtr0.060.06
Raise/Lower Timesec34/2034/21
Tirein66
Lifting Motorv/kh12/0.812/0.8
Power Sourcev/AhDec-85Dec-85
ChargerkgDec-15Dec-15
Weight482516

STANDARD MOBILE SCISSOR LIFT

Load capacity: 500 kg, Platform Height: upto 16 mtr, Movement Manual, Lifting Battery Operated

Standard mobile scissor lifts are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance and construction work. They are designed to lift limited weights and capable of being fully operated by a single person. It is unique in carrying capacity and a wide platform that can bring more workers and tool set, whether indoors or outdoors.

TECHNICAL SPECIFICATION

ModelND-SL-M-0.5-6 ACND-SL-M-0.5-7.5 ACND-SL-M-0.5-9 ACND-SL-M-0.5-11 ACND-SL-M-0.5-12 ACND-SL-M-0.5-14 ACND-SL-M-0.3-16 AC
S.W.L. on Extensionkg500500500500500500300
Platform Height Max.mtr67.5911121416
Platform Size (L*W)mtr1.85*0.881.8*1.001.8*1.002.1*1.152.45*1.352.45*1.352.75*1.5
Overall Lengthmtr1.91.851.852.252.152.152.75
Overall Widthmtr1.121.241.241.591.591.591.74
Overall Heightmtr0.751.51.651.851.8522
Lifting Timesec5472808890120130
Motor Powerkw1.51.51.52.2333
Power VoltageVAC 330AC 330AC 330AC 330AC 330AC 330AC 330
Weightkg650110012601380185021502680
Tyre⌀200 Polyurethane⌀400-8 Pneumatic Tyre⌀400-8 Pneumatic Tyre⌀500-8 Pneutmatic Tyre⌀500-8 Pneutmatic Tyre⌀500-8 Pneutmatic Tyre⌀500-8 Pneutmatic Tyre
Driving Motorkw0.750.750.750.750.751.21.2
Lifting Motorkw2.22.22.2332.32.3
Power SourceAh120*2120*2120*2150*2200*2150*4150*4
Chargerv/AhApr-1524/1524/1524/1524/15Apr-1524/15
Overall Sizemtr1.95*1.08*1.11.95*1.2*1.541.95*1.2*1.682.25*1.35*1.72.5*1.55*1.882.5*1.55*22.85*1.75*2.1

HEAVY DUTY MOBILE SCISSOR LIFT

Load capacity: 1000 kg, Platform Height: upto 12 mtr, Movement Manual, Lifting Battery Operated

Standard mobile scissor lifts are used to provide temporary access for contractors to high, inaccessible areas on a variety of job sites such as maintenance and construction work. They are designed to lift limited weights and capable of being fully operated by a single person. Made of high strength and high quality manganese steel, it is durable and durable
Smooth movements, low noise, can work in harsh environments. The hinge points are optimized by computer to make it in the best position. Between the fork between the hinge with oil-free bearings or grease nipples to ensure that the device itself good self lubricating. Scissor-type lifting structure, after lifting a higher stability. Large working platform and high carrying capacity, so that a wider range of high-altitude operations, more efficient, more secure security. Steering chassis design coupled with rubber inflatable wheel, easy to move and flexible. Power supply voltage selection AC industrial electricity AC380V

TECHNICAL SPECIFICATION

ModelND-SL-M-1-6 ACND-SL-M-1-9 ACND-SL-M-1-12 AC
S.W.L. on Extensionkg100010001000
Platform Height Max.mtr6912
Platform Size (L*W)mtr1.8*11.8*1.252.45*1.35
Overall Lengthmtr1.851.952.5
Overall Widthmtr1.241.451.55
Overall Heightmtr1.11.751.88
Lifting Timesec80100135
Motor Powerkw2.234
Power VoltageVAC 330AC 330AC 330
Weightkg95015102700
Tyre⌀500-8 Pneutmatic Tyre⌀500-8 Pneutmatic Tyre⌀500-8 Pneutmatic Tyre
Optional Motorized Device With DC Power
Driving Motorkw0.751.21.2
Lifting Motorkw332.2
Power SourceAh150*2200*2150*2
Chargerv/Ah24/1524/1524/15
Overall Sizemtr1.95*1.2*1.451.95*1.45*1.752.5*1.55*1.88

Watch Mobile Scissor Lift In Action
