Nido drum palletizers offers users with simple, economic and reliable drum handling equipment.

ND-D-DP-3W / ND-D-DP-4W

ND-D-DP-3W

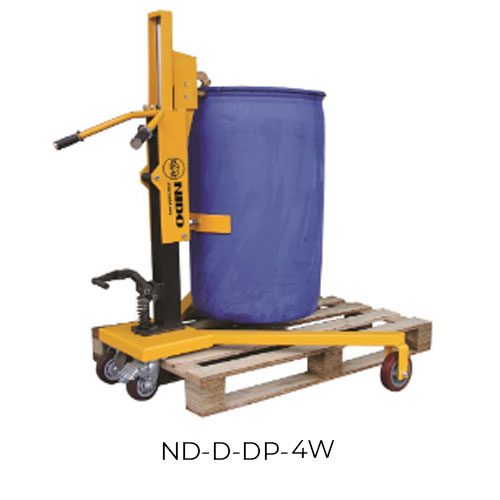

ND-D-DP-4W

TECHNICAL SPECIFICATIONS

Model ND-D-DP-3WND-D-DP-4W
Loading Capacitykg300300
Drums typemm208.2 L steel drums208.2 L steel drums
Lifting Heightmm300300
Inner width of supporting legsmm10851195
Wheel Dimensionmm ร˜150/ ร˜125 ร˜150/ ร˜125
Overall Size (L x W x H)mm905 x 1270 x 11161000 x 1380 x 1116
Net Weightkg50.857.4

FETURES

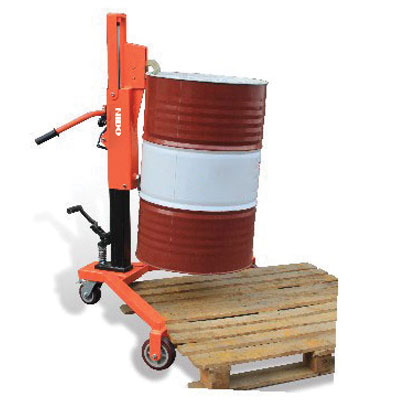

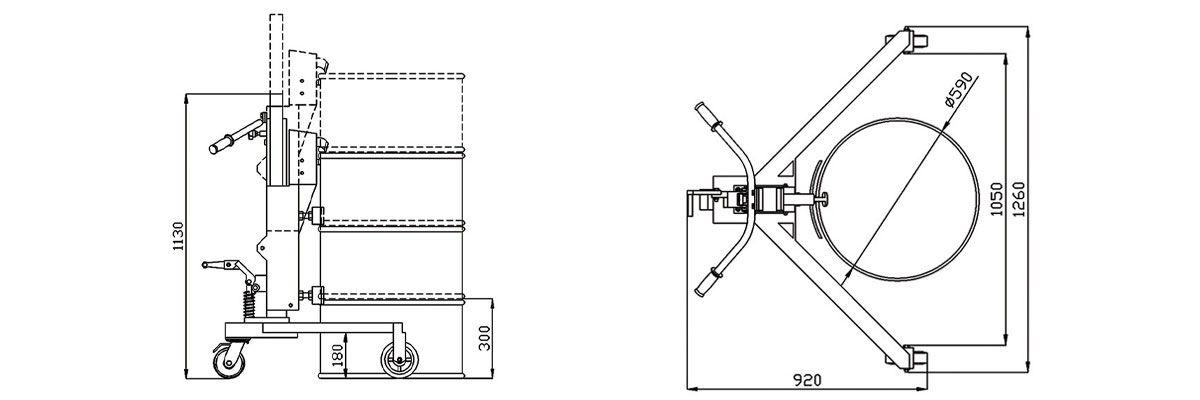

ND-D-DP-AL-3W

Nido drum palletizer with 300 kgs capacity, offers users with simple, economic and reliable drum handling equipment.

  • Ergonomic solution for lifting, transporting 208.2 ltr. rimmed steel drums and 200 ltr rimmed plastic drums on spill or on standard pallets, Eagle grip structure, and brake castors
  • Automatic clamping ensures safety while lifting drum
  • Lifting is realized by pedaling, it is equipped with the economic handler which helps to operate the machine safely and easily.
  • The gantry is made up of special rolled industrial-manufactured C type steel which is strong and safe.
  • High-quality oil cylinder with 600 mm lifting height.
  • It will grip the drum during lifting automatically.
  • It can load and unload the drums from 905 mm depth and 1270 mm width pallet.

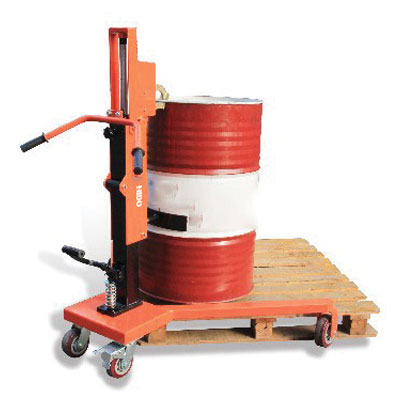

ND-D-DP-AL-4W

Nido drum palletizer with 300 kgs capacity, offers users simple, economic, and reliable drum handling equipment.

Ergonomic solution for lifting, and transporting 208.2 ltr rimmed steel drums and 200 ltr rimmed plastic drums on spill or on standard pallets, Eagle grip structure, and brake castors
Automatic clamping ensures safety while lifting the drum
Lifting is realized by pedaling, it is equipped with an economic handler which helps to operate the machine safely and easily.
The gantry is made up of special rolled industrial-manufactured C-type steel which is strong and safe.
High-quality oil cylinder with 600 mm lifting height.
It will grip the drum during lifting automatically.
It can load and unload the drums from 1000 mm depth and 1380 mm width pallets.

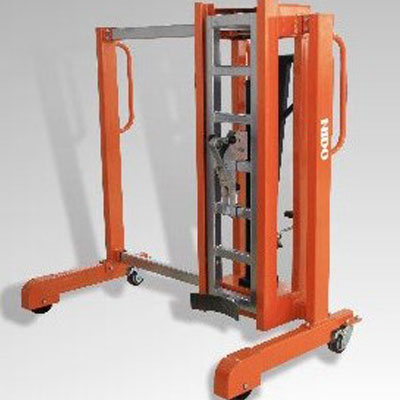

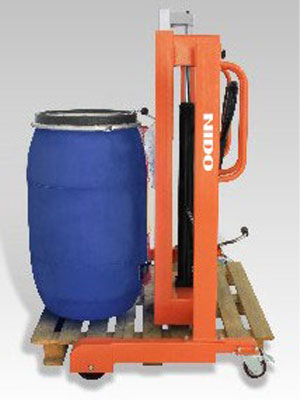

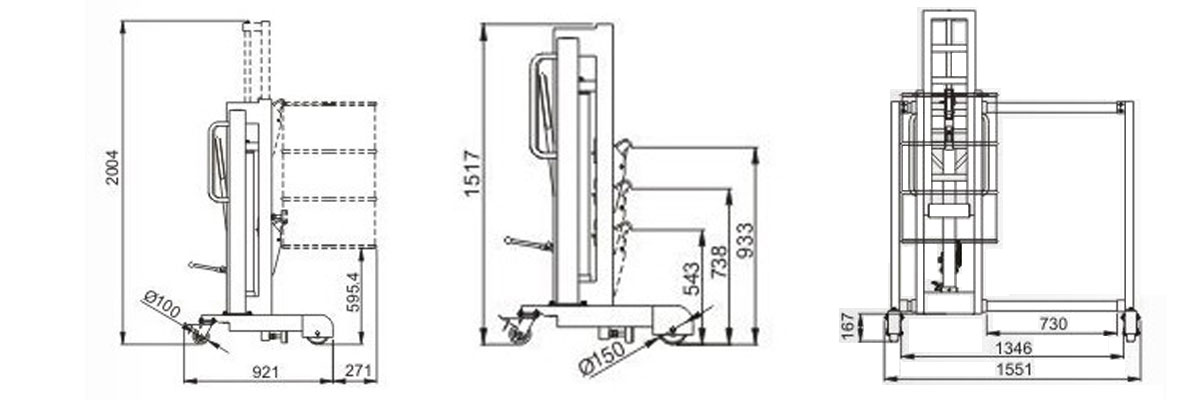

ND-D-DP-AL-DT 380

Model ND-D-DP-AL-DT 380
Loading Capacitykg380
Net Weightkg168
Wheel Size (Front)mmร˜150
Wheel Size (Rear)mmร˜100
Overall Size (L x W x H)mm921 x 1551 x 1517
Lifting Heightmm595.4

FEATURES

ND-D-DP-AL-DT 380

Nido drum palletizer with 380 kgs capacity, offers users simple, economic, and reliable drum handling equipment.

Ergonomic solution for lifting, transporting, and placing 208.2 L rimmed steel drums and 200lLrimmed plastic drums on spill or standard pallets.
Automatic clamping ensures safety while lifting the drum
Lifting is realized by pedaling, it is equipped with an economic handler which helps to operate the machine safely and easily.
Eagle-gripper structure, fit for operating with steel, plastic, and fiberย drum

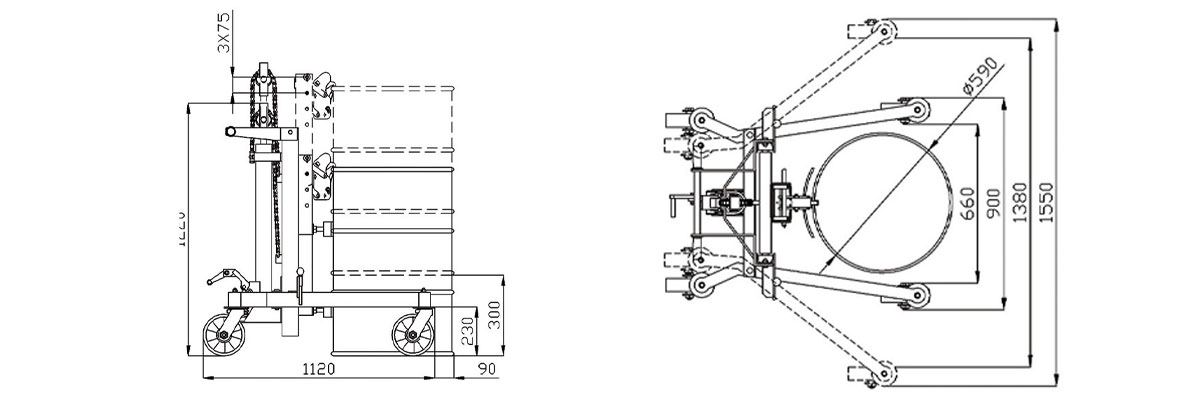

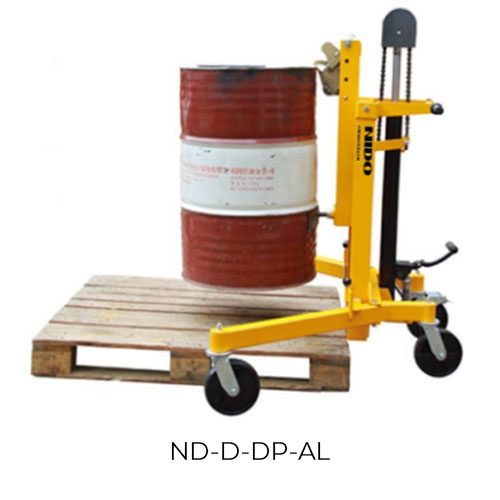

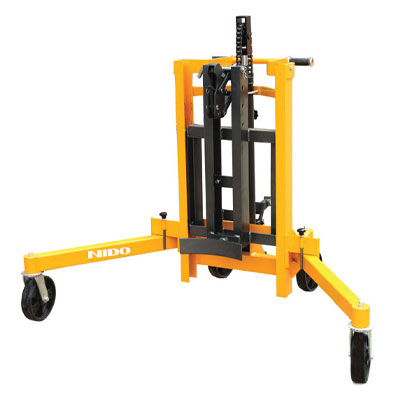

ND-D-DP-AL

Model ND-D-DP-AL
Loading Capacitykg400
Net Weightkg109
Wheel Size mmร˜200 x 50

FEATURES

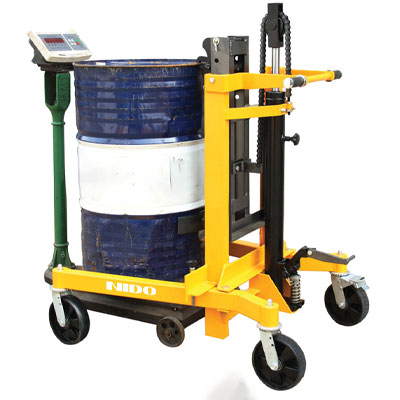

ND-D-DP-AL

Nido drum palletizer with adjustable legs with 400 kgs capacity, offers users with simple, economic and reliable drum handling equipment.

  • Integrated functions of drums transporting, stacking and weighing.
  • Special rolling technology manufactured C-shaped steel frame which is strong and safe.
  • Eagle-gripper structure, fit for operating with steel, plastic and fiberย drum
  • Just remove lock pin and leg moves easily on caster โ€“ no need to lift truck to adjust.
  • Automatic clamping tightly drums during lifting, which is safe and reliable.
