DESCRIPTION

Nido Electric Reach trucks are expected to retrieve cargo from any type of pallet position, pick up and place them in the staging area. Alternately, they are also used to retrieve cargo from the staging area for put away into storage racks. Lifting your business higher with Nido Reach Truck latest generation ergonomic design.

Reach trucks offer several benefits, including:

  • Increased Storage Density
  • Efficient Material Handling
  • Enhanced Safety
  • High working efficiency

FEATURES

Reach trucks are designed for operators to have an unobstructed view during operation. This means improved seat positions, transparent roofs, and better accessibility. Safety in terms of PIN code start systems, the use of a fork camera, and lights make reach trucks easier to use and also an attractive addition to any warehouse operation.

  • All Wheel Brakes : Equipped with front & rear wheel brakes, better braking effect, able to be used on slippery and icy ground, safer for the operator to work.

  • Ergonomic Design : Easy-operate lever design and multifunctional intelligent instrument panel with wheel display function for more comfortable and convenient operation; adjustable seat front and back to provide the most comfortable operating environment for the operator.

  • High Surplus Capacity Gantry : High precision gantry, no load loss of loading up to 6300 mm and the same excellent capacity at ultra-high loads.

  • High Stability Gantry : Stable at high level, less swaying

  • Better Comfort of Operation : Equipped with integrated handles, thumb switches and other operating functions, lighter and more comfortable.

  • High Work Efficiency : Faster lifting and lowering speed, driving speed, higher working efficiency.

  • 360° Movement

Flexible EPS Steering

3-Pivot design, with better stacking stability

Excellent mast loading performance and wide vision mast

New LED display

Ergonomic suspension seat

Pre selection height system (Optional)

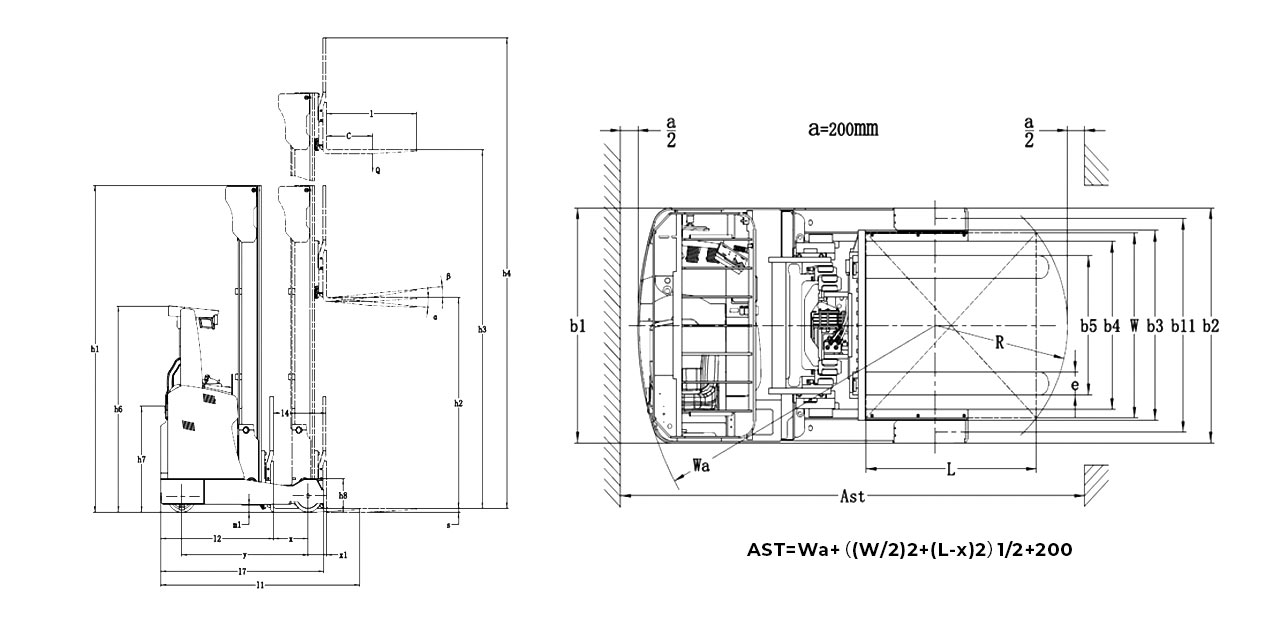

TECHNICAL SPECIFICATION

Duplex full free mast
Model
20-3030-30
Lift height
30003000
Mast extended height with load backrest
40804270
Mast closed height
19952100
Free lift height
952966

MAST SPECIFICATION

Triplex full free mast
Model
20-4530-45
Lift height
45004500
Mast extended height with load backrest
55355630
Mast closed height
20952150
Free lift height
1052996
Model
UnitND-AFL-2080M
ND-AFL-20110M
ND-AFL-20125M
Standard
ManufacturerMiMAMiMAMiMA
Power Typebattery
Electric
battery
Operation Type
Seated
Seated
Seated
Rated Capacity
Q(kg)
2000
2000
2000
Load Center
C(mm)
600
600
600
Front Overhang
x(mm)
285
285
285
Wheelbase
y(mm)
1720
1720
1720
Weight
Service weight(incl. battery)kg720076008500
Tyre
Wheel type, drive side/load side
Solid rubber
Solid rubber
Solid rubber
Tyre size, load side
mm
Φ457×178
Φ457×178
Φ457×178
Tyre size, drive side
mm
Φ415×178
Φ415×178
Φ415×178
Wheel quantity, front/rear(X= drive)
2x/2
2x/2
2x/2
Wheel tread, drive side
b10(mm)
800
800
800
Wheel tread, load side
b11(mm)
1090
1090
1220
Size
Tilt of fork, Forward/Backwardα/β(°)1/31/31/3
Mast swing angle
°210
210
210
Height of mast closed
h1(mm)
406745675400
Full free lifting height
h2(mm)
253430343868
Lifting height
h3(mm)
85201002012520
Height of mast extended
h4(mm)
97001120013700
overhead guard height
h6(mm)
225022502250
Seat height
h7(mm)
123012301230
Overall length
L1(mm)
383038303830
Length to the fork face
L2(mm)
273027302730
Overall width
b1/b2(mm)
980/1260
980/1260
980/1260
Fork dimensions
l/e/s(mm)
1100/100/50
1100/100/50
1100/100/50
Installation level
Ⅱ
Ⅱ
Ⅱ
fork carriage width
b3(mm)
990
990
990
Width across forks
b5(mm)
250～890
250～890
250～890
Side move distance
mm
±100
±100
±100
Ground clearance of mast
m1(mm)
70
5070
Ground clearance of bodym2(mm)
100
100
100
Min Stacking aisle width(pallet800x1200 depth)
Ast(mm)
1900
1900
1900
Efficiency aisle≥ (pallet to pallet distance)mm
2000
2000
2000
Rack to rack distance ≥
mm
2200
2200
2400
Min Stacking main aisle width(pallet 800x1200 depth )
mm
2650
2650
2650
Turning radiusWa(mm)
2200
2200
2200
Function
Drive speed,load/unload
km/h
13
12/13
12/13
Lift speed.load/unload
mm/s

400/420
400/420
400/420
Lower speed, load/unload
mm/s280/200
280/200
280/200
Max. climbing ability%(tanθ )
12/13
12/13
12/13
Brake typeMechanical hydraulic
Mechanical hydraulic
Mechanical hydraulic
Driving
Driving motor power (S2-60min)
kw
AC18.5
AC16.3
AC18.5
Lifting motor power (S3-15%)
kw
AC15
AC15
AC15
Battery voltage/capacity
V/Ah
48/900
80/500
48/900
Battery weight
kg
1400
13801400
Steering system
Hydraulic steering
Hydraulic steering
Hydraulic steering
