Specifications

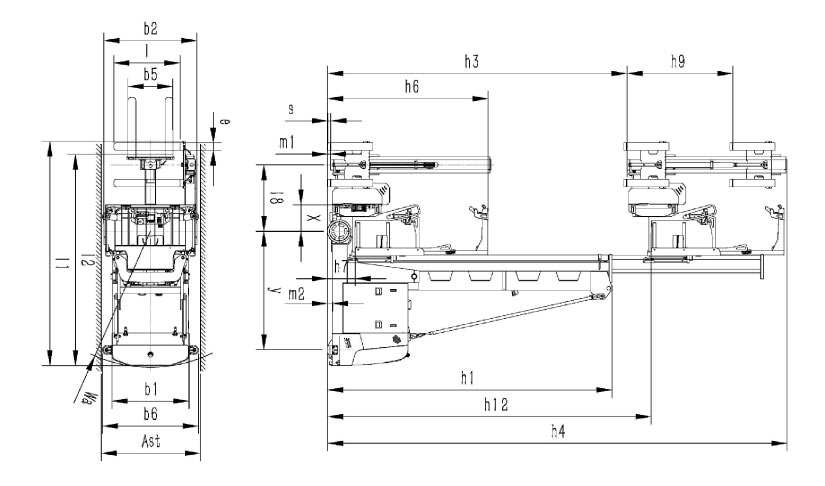

| Triplex Mast |
|||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | MHB Series | 13-60 | 13-65 | 13-70 | 13-75 | 13-80 | 13-85 | 13-90 | 13-95 |
| Lift height | h3 | 5780 | 6280 | 6780 | 7280 | 7780 | 8280 | 8780 | 9280 |
| Platform lift height | h12(h3+h7) | 6000 | 6500 | 7000 | 7500 | 8000 | 8500 | 9000 | 9500 |
| Picking height | h28(h12+1600) | 7600 | 8100 | 8600 | 9100 | 9600 | 10100 | 10600 | 11100 |
| Mast closed height | h1 | 2928 | 3095 | 3211 | 3377 | 3544 | 3711 | 3878 | 4044 |
| Max mast extended height | h4 | 8035 | 8535 | 9035 | 9535 | 10035 | 10535 | 11035 | 11711 |

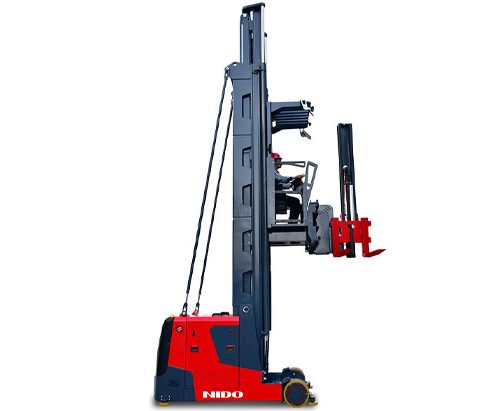

VNA Man Up Order Picker also called Very Narrow Aisle special Forklift is a three-way stacking truck for Pallet Racking. The innovative design allows this turret truck to load and unload pallets in very narrow aisle and reach higher. Man Up VNA can pick up and put away pallet i.e. both application is suitable. It can maximize utilization of the warehouse.

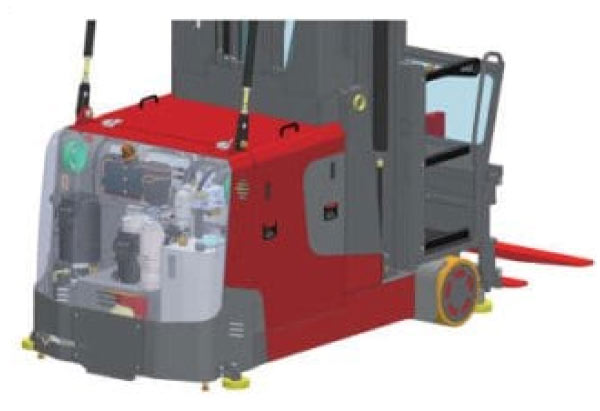

Features
The voltage level of the whole vehicle is 80V, with the high voltage, low current and low energy consumption, which can provide longer work life.
The main controller and other components are imported brand products, the operation is stable and safe. The drive, steering and lifting motors are all AC motors, brushless, maintenance free and more convenient.
- 80V Electrical System
- High Voltage Low Current
- Full AC Motor
- Maintenance Free and More Convenient
Fork Highlight
Fork Highlight
- The forks can rotate 180° freely, when working in the narrow 1.65 meter aisle, the forklift does not need to turn and the operation is simple and convenient, which greatly improves the storage efficiency.
- The forks can also move left and right to handle cargo stably, providing the efficiency and flexibility of the operation.
- The vehicle is equipped with side shifter and rotate linkage action function as standard. The fork direction
can be quickly adjusted by one key operation.

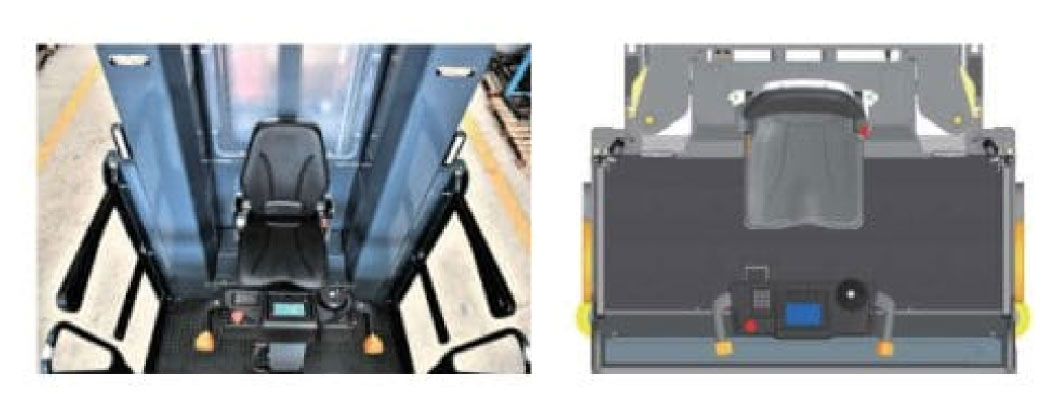

Excellent ergonomic design
High Configuration & Comfortable Operation
High Configuration & Comfortable Operation

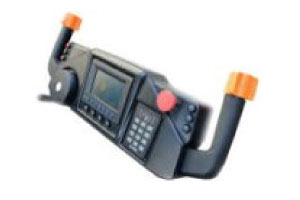

Humanized Control Assembly

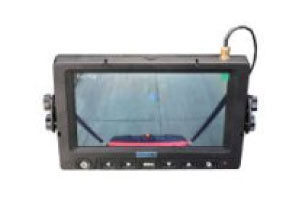

HD Reversing Video Display

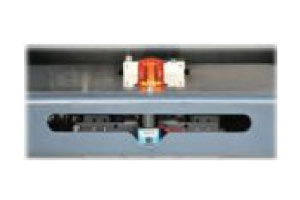

Laser safety obstacle avoidance function
Mast Specification
| Model No | ND-MDL-25/16 | |
|---|---|---|
| Rated Lifting Capacity | kg | 2500 |
| Max. Lifting Height | mm | 1600 |
| Dimension of Table | mm | 2000*1600 |
| Voltage | V | AC380 |
| Manufacturer's type designation | TE10 | |
|---|---|---|
| Distinguishing mark | ||
| Power(battery, diesel, petrol, gas, manual) | Battery |
|
| Operator type | Pedestrian | |
| Load Capacity / rated load | Q(t) | 1.0 |
| Rated drawbar pull | F(N) | 200 |
| Wheelbase | Y(mm) | 325 |
| Weight | ||
| Service weight | kg | 62 |
| Axle loading, unladen front/rear | kg | 46/16 |
| Tyres, chassis | ||
| Tires | R+PU | |
| Tire size, front | 0xw(mm) | 0 250 x80 |
| Tire size, rear | 0xw(mm) | 0 75x32 |
| Wheels, number front/rear(x=driven wheels) | 2x+2/- | |
| Tread, front | b10(mm) | 185 |
| Tread, rear | b11(mm) | 380 |
| Dimensions | ||
| Height of tiller in drive position min./ max. | h1.(mm) | 750/1250 |
| Overall length | I,(mm) | 810 |
| Overall width | b1(mm) | 492 |
| Ground clearance, center of wheelbase | m,(mm) | 38 |
| Turning radius | Wa(mm) | 475 |
| Performance data | ||
| Travel speed, laden/ unladen | km/h | 4.2/4.5 |
| Drawbar pull, laden/unladen | N | 200/- |
| Max.drawbar pull, laden/unladen | N | 450/- |
| Service brake | Electromagnetic | |
| Electric- engine | ||
| Drive motor rating | kw | 0.3 |
| "Battery acc. to DIN 43531/ 35/ 36 A,B,C, no | NO | |
| Battery voltage, nominal capacity K5" | V/Ah | 24 / 24 |
| Battery weight | kg | 16 |
| Additional data | ||
| Type of drive control | DC-Speed Control |
|
| Sound level at driver's ear ace.to EN 12053 | dB(A) | 62 |
