Specifications
| Duplex Mast | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | MHB Series | 13-30 | 13-37 | 13-40 | 13-45 | 13-50 | 13-55 | 13-60 |
| Lift height | h3 | 2780 | 3480 | 3780 | 4280 | 4780 | 5280 | 5780 |
| Platform lift height | h12(h3+h7) | 3000 | 3700 | 4000 | 4500 | 5000 | 5500 | 6000 |
| Picking height | h28(h12+1600) | 4600 | 5300 | 5600 | 6100 | 6600 | 7100 | 7600 |
| Mast closed height | h1 | 2461 | 2780 | 2928 | 3128 | 3377 | 3711 | 3878 |
| Max mast extended height | h4 | 5035 | 5735 | 6035 | 6535 | 7035 | 7535 | 8035 |
Description

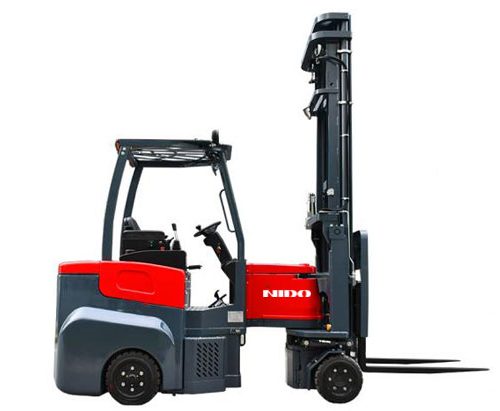

The articulated forklift is designed for faster and more efficient loading and unloading goods outdoor and indoor, as well as meeting the narrow aisle intensive storage. The articulated forklift has the functions of traditional counterbalanced forklift, pallet truck and high-level storage forklift, and truly achieves one-stop indoor and outdoor material handling and storage.
The forklift is equipped with maintenance-free full AC motors, and the high-speed ratio gearbox provides sufficient power for driving and climbing. Excellent ergonomic design ensures high efficiency and comfortable driving.

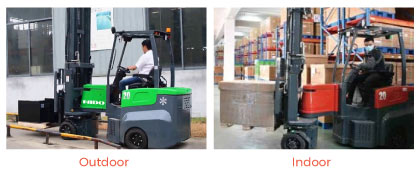

Indoor and outdoor usage
Indoor and outdoor usage
It can be used conveniently both indoors and outdoors. The operator can complete a series of operations such as loading/unloading, handling and stacking through an articulated forklift.
High speed driving and efficient work
High speed driving and efficient work

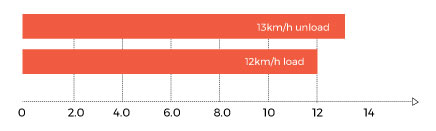

The articulated forklift is equipped with super high-power AC drive motor to provide sufficient power. The max driving speed with full load can reach 12km/h, and the max driving speed with no load can reach 13km/h

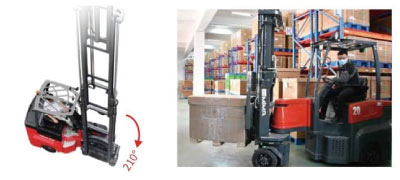

Flexible steering : easy operation in narrow aisle width
Flexible steering : easy operation in narrow aisle width
The mast swing angle is 210 degree. When turning the max. mast swing angle is 210 degree.
Various configuration and comfortable operation

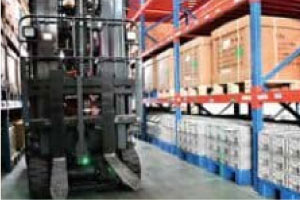

Laser assistant alignment of forklift

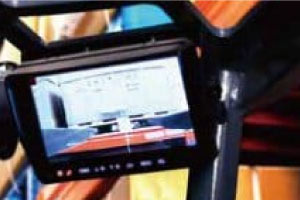

HD camera display

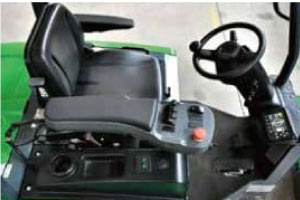

Electric proportion integrated handle

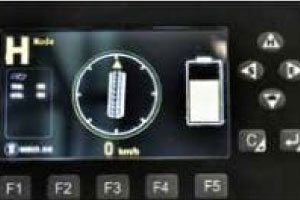

LCD display

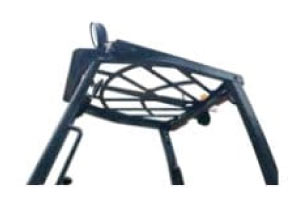

Grid to design for better view
