DESCRIPTION

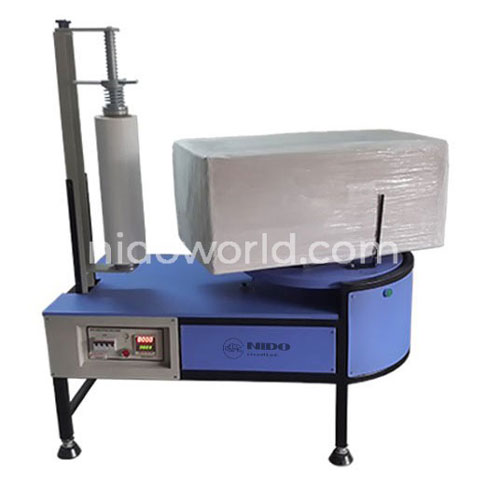

Nido Carton Stretch Wrapping Machine – Mechanical Stretch/ Power Pre-stretch
- Very fast and economic packing, gives packages/box extra strength.
- Single(Standard) / Dual roll mounting (optional) / pre stretch model / mechanical stretch for various size of boxes.
- Adjustable box stopper for various box sizes, which eliminates pneumatic top holding. Hence no air connection required for holding of Box.
- Stretch film tension can be adjustable for tight or loose apply on box.
- It protect the package against dust and damp, and make the package clean.
- It can decrease the scratch of the package, improve the surface quality and make the package more secure.
TECHNICAL SPECIFICATION
| Model | ND-MH-FG-800B | |
|---|---|---|
| Power Supply | V/Hz | Single Phase AC 220/50 |
| Compressed Air | bar | 6 |
| Speed of Turntable | rpm | 0 to 20 |
| Turntable Height | mm | 650 |
| Turntable Dia | mm | 400 |
| Wrapping Height | mm | 400 to 500, 500 to 650 |
| Capacity | kg | 80 |
| Packing Material | - | LLDPE film, width ≤500 mm, out diameter ≤Φ280 mm |
| Net Weight | kg | 110 |
| Noise Level | dB | ≤75DB |
