Specifications
| MODEL | ND-SL-SP-3 | ND-SL-SP-3.9 | |
|---|---|---|---|
| Rated Laod | kg | 240 | 240 |
| MAX. Platform Height | mtr | 3 | 3.9 |
| Max. Platform Occupancy | 1 | 1 | |
| Platform Size | m | 1.15*0.7 | 1.15*0.7 |
| Overall Length | m | 1.3 | 1.3 |
| Overall Width | m | 0.76 | 0.76 |
| Overall Height (Rails Up) | m | 1.86 | 1.94 |
| Platform Height (Guarrails Folded) | m | 1.5 | 1.59 |
| Extension Length | m | 0.55 | 0.55 |
| Load on Extension | kg | 100 | 100 |
| Raise / Lower Time | sec | 28/20 | 32/21 |
| Ground Clearance | m | 0.05 | 0.05 |
| Turning Radius | 0 | 0 | |
| Max Working Slope | degree | 1.5/2 | 1.5/2 |
| Driving Wheel Size | m | 0.23*0.08 | 0.23*0.08 |
| Gradability | percent | 25 | 25 |
| Wheelbase | m | 1.03m | 1.03m |
| Front Tyre | in | 6 | 6in |
| Drive Speed (Stowed) | km/h | 4 | 4 |
| Drive Speed (Raised) | km/h | 0.5 | 0.5 |
| Power Source | v/Ah | 2*12/55 | 2*12/55 |
| Lifting Motor | v/kw | 24/0.8 | 24/0.8 |
| Driving Motor | v/kw | 24/0.3 | 24v/0.3 |
| Charger | v/A | 24-Nov | 24-Nov |
| Weight | kg | 630 | 660 |
| MODEL | ND-SL-SP-5.8 | ND-SL-SP-6N | ND-SL-SP-8N | ND-SL-SP-8 | ND-SL-SP-10 | ND-SL-SP-12 | |
|---|---|---|---|---|---|---|---|
| S.W.L. | kg | 230 | 230 | 230 | 450 | 320 | 320 |
| S.W.L. On Extension | kg | 113 | 113 | 113 | 113 | 113 | 113 |
| Max Workers Number | 2 | 2 | 2 | 2 | 2 | 2 | |
| Max. Working Height | m | 7.8 | 8 | 10 | 10 | 12 | 13.8 |
| Max. Platform Height | m | 5.8 | 6 | 8 | 8 | 10 | 11.8 |
| Overall Length | m | 1.81 | 2.43 | 2.43 | 2.43 | 2.43 | 2.43 |
| Overall Width | m | 0.76 | 0.81 | 0.81 | 1.15 | 1.15 | 1.15 |
| Overall Height | m | 2.16 | 2.18 | 2.3 | 2.31 | 2.42 | 2.55 |
| (Rails Up) | |||||||
| Overall Height | m | 1.82 | 1.85 | 1.87 | 1.76 | 1.91 | 2.03 |
| (Rails Down) | |||||||
| Platform Size (L*W) | m | 1.67*0.74 | 2.27*0.81 | 2.27*0.81 | 2.27*1.12 | 2.27*1.12 | 2.27*1.12 |
| Platform Extension Size | m | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 | 0.9 |
| Ground Clearance (Stowed) | m | 0.09 | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 |
| Ground Clearance (Raised) | m | 0.019 | 0.019 | 0.019 | 0.019 | 0.019 | 0.019 |
| Wheelbase | m | 1.36 | 1.87 | 1.87 | 1.87 | 1.87 | 1.87 |
| Turning Radius (Inside) | m | 0 | 0 | 0 | 0 | 0 | 0 |
| Turning Radius (Outside) | percent | 1.64 | 2.1 | 2.1 | 2.2 | 2.2 | 2.2 |
| Lift/Drive Motor | kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw | 24V/3.3kw |
| Travel Speed (Stowed) | km/h | 3 | 3 | 3 | 3 | 3 | 3 |
| Travel Speed (Raised) | km/h | 1 | 1 | 1 | 1 | 1 | 1 |
| Raise/Lower Time | sec | 18/22 | 35/25 | 40/30 | 40/30 | 60/40 | 70/45 |
| Power Source | v/Ah | 4*6/210 | 4*6/225 | 4*6/225 | 4*6/225 | 4*6/225 | 4*6/225 |
| Charger | v/A | 24/30 | 24/30 | 24/30 | 24/30 | 24/30 | 24/30 |
| Gradability | % | 25 | 25 | 25 | 25 | 25 | 25 |
| Max. Working Slope | Degree | 1.5/3 | 02-Mar | 1.5/3 | 02-Mar | 02-Mar | 1.5/3 |
| Tyre Size | ø | 305*100 | 380*129 | 380*129 | 380*129 | 380*129 | 380*129 |
| Weight | kg | 1400 | 1945 | 2100 | 2175 | 2468 | 2830 |
DESCRIPTION

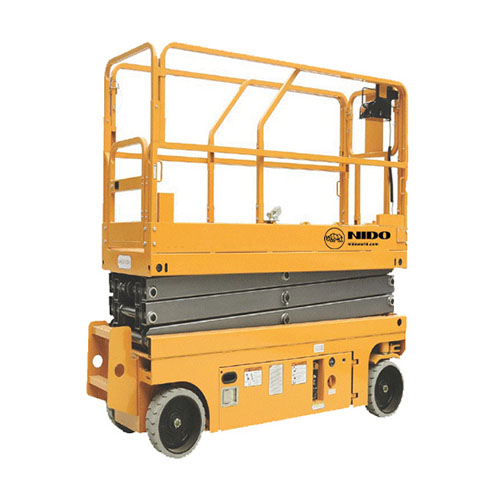

Nido Mini Self Propelled Scissor Lift
Nido mini self propelled scissor lift, is a scissor type mechanic structure with high stability. It is can be used for the maintenance of minimum height area by single person.
Mini Self Propelled Scissor Lift
Standard Configuration :

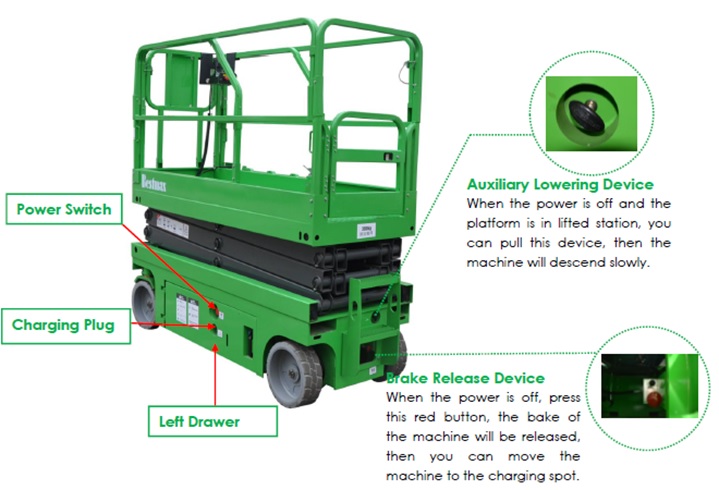

- Auxiliary Lowering Device
- Anti-burst system
- Charging Indicator

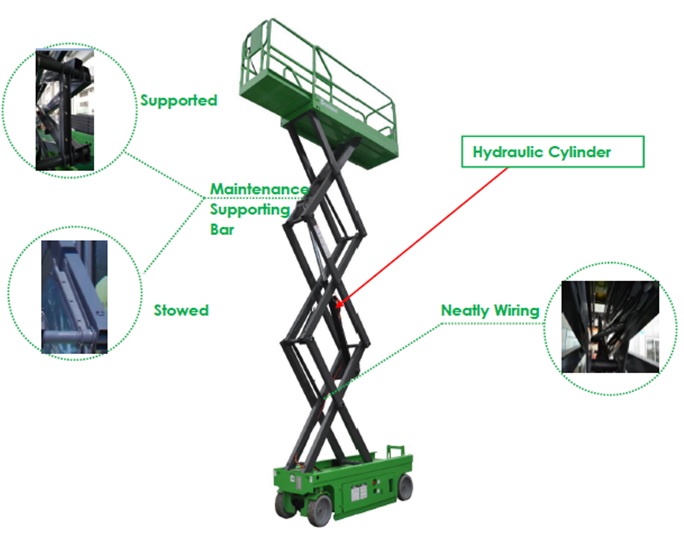

- Maintenance Supporting Bar
- Emergency Stop Button
- Automatic Break System
- Fault Diagnosis
- Folded Fence
Self Propelled Scissor Lift

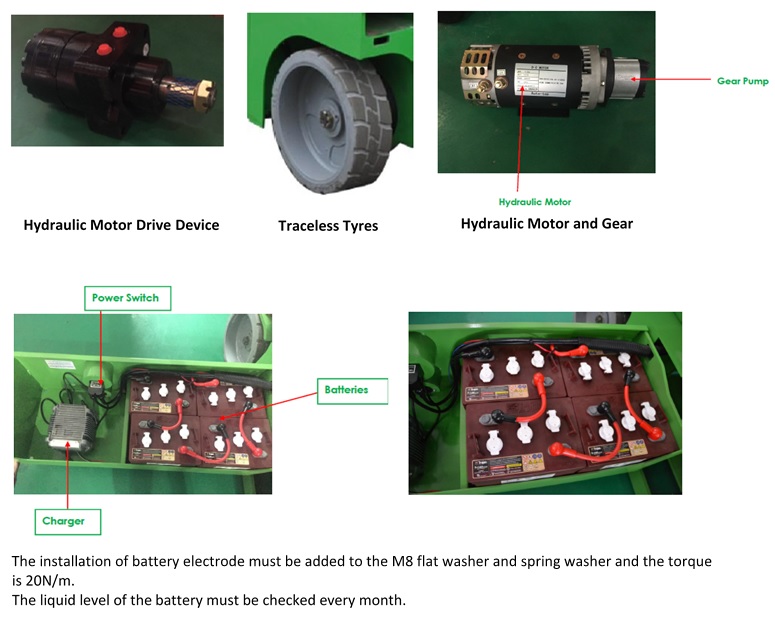

- Battery-driven, low noise, no pollution, suitable for a variety of operating environment
- Automatic piling protection system, more secure and reliable
- One-way extension platform, you can quickly reach the operating point
- Fault code automatically displays for easy maintenance
Standard Configuration :
- Proportional control
- Platform self-locking door
- One-way extension platform
- Automatic braking system
- Seamless tires
- 4 × 2 drive
- buzzer
- Emergency stop button
- Fault diagnosis system

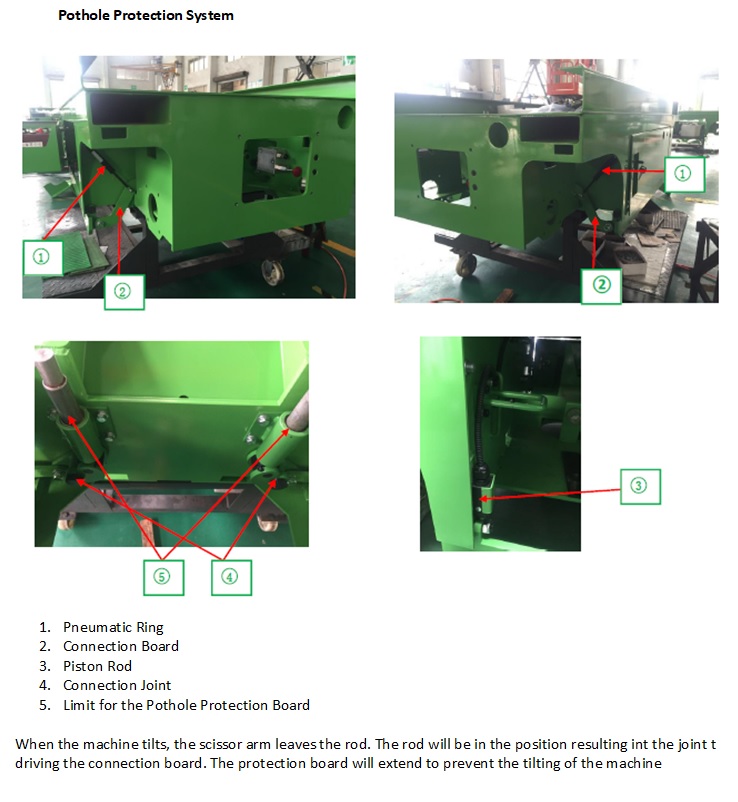

- Automatic potholes protection
Standard Self Propelled Scissor Lift
- Battery-driven, low noise, no pollution, suitable for a variety of operating environment
- Automatic piling protection system, more secure and reliable
- One-way extension platform, you can quickly reach the operating point
- Fault code automatically displays for easy maintenance
Standard Configuration:
- Proportional control
- Platform self-locking door
- One-way extension platform
- Automatic braking system
- Seamless tires
- 4 × 2 drive
- buzzer
- Emergency stop button
- Fault diagnosis system
- Automatic potholes protection
FEATURES
Self-propelled Scissor Lift Features List

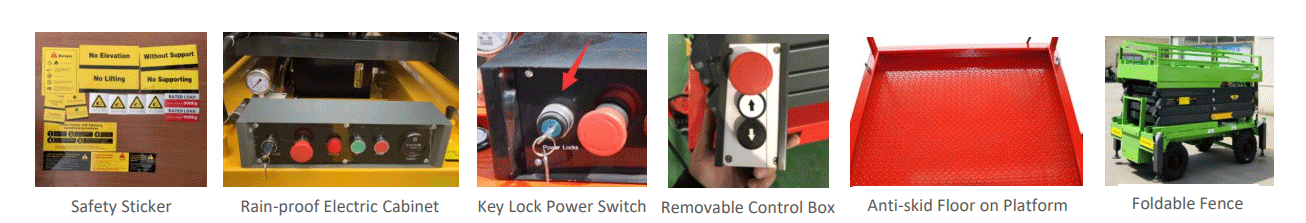

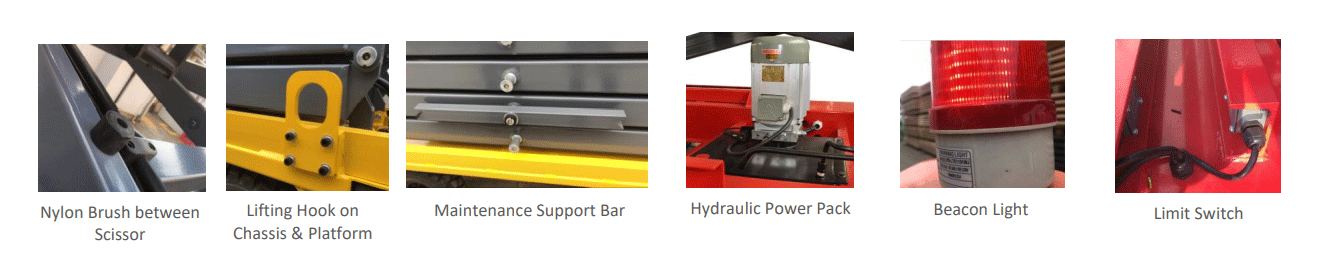

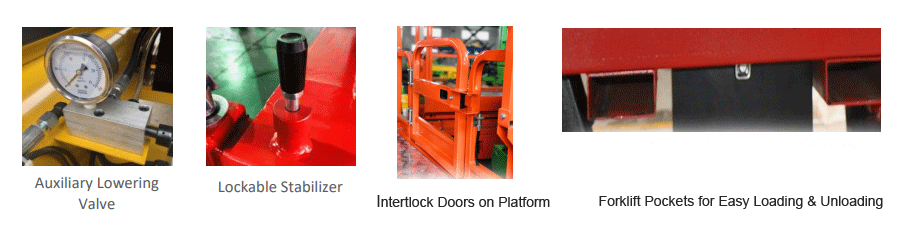

STANDARD FEATURES
- Self-Lock Gate on Platform
- Non-marking Tyre
- Automatic Brake System
- Emergency Lowering System
- Emergency Stop Button
- Horn
- Forklift Pockets
- Charging Indicator
- Charger Protection
- 2WD
- Safety Brackets
- Folding Guardrails
- Powder Coating Painting

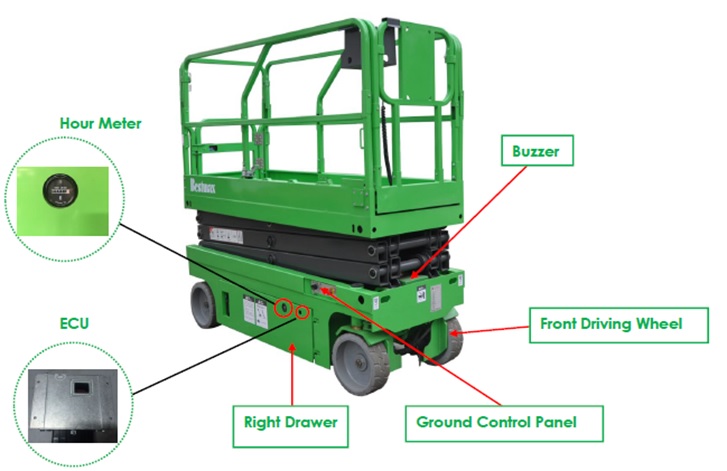

- Hour Meter
- Heavy Towing Handle
- Detachable / Foldable Fence
- Maintenance Support Bar

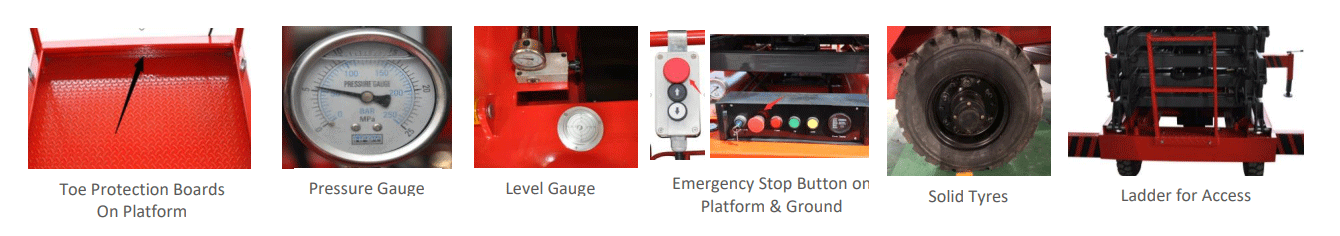

OPTIONAL FEATURES
- Platform Extension
- AC Power to Platform
- Working Light on the Platform
- On-board Diagnostic System
- Cylinder Holding Valve
- Horn
- All Motion Alarm
- Flashing Beacon
- Tilt Sensor with Alarm
- Two Bigger Wheels by Hydraulic Turning
