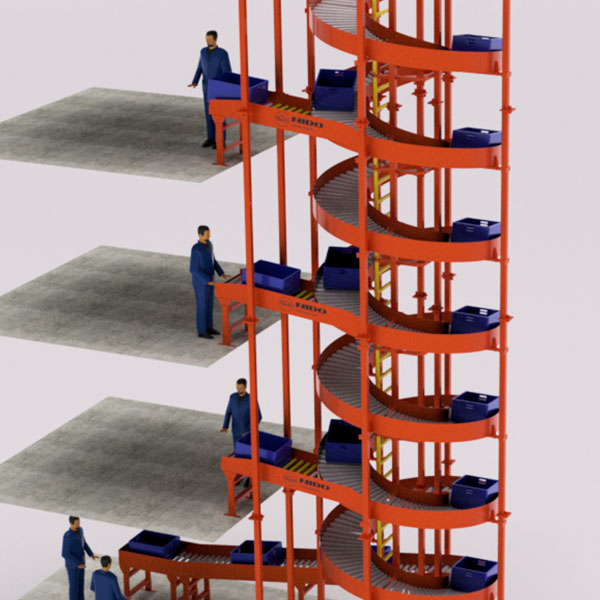

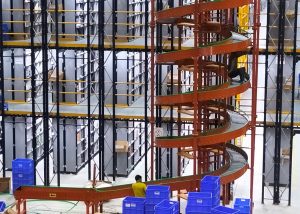

CANOPUSVERT Gravity Spiral Conveyors offer an energy-free solution for vertical material movement. Using low-friction rollers and the force of gravity, they move goods like cartons, totes, trays, and sacks without motors or drive systems.

  • Material Compatibility: Cartons, totes, trays, parcels

  • Load Capacity: 2-30 kgs

  • Height Range: Up to 12 meter

  • Roller Type: PVC / Galvanized / Stainless steel rollers

  • Speed: Controlled by gravity (flow regulators optional)

  • Maintenance: Minimal – no motors or belts

Request a QuoteRequest a Quote

SPECIAL FEATURES

  • Efficient material handling without the need for external power sources.

  • Ensures a smooth workflow and minimizes manual handling.

  • Help transport items from higher levels to ground level, where they can be further processed for shipping.

  • Can handle a wide range of materials, including small parts, packages, loose bulk materials, and more.

  • Requires less maintenance compared to motor-driven conveyors, resulting in reduced downtime and operational costs.

  • Reliable load handling, no matter how light or heavy the item is, it can handle it smoothly.

TECHNICAL DRAWING

OPTIONS WE CAN PROVIDE

  • 1

    Motorized

  • 2

    Safety net

  • 3

    Jamming sensor

  • 4

    Tower light

  • 5

    Fencing Straight

  • 6

    Tapared roller

  • 7

    Brake shoe roller

CONFIGURATION OPTIONS
