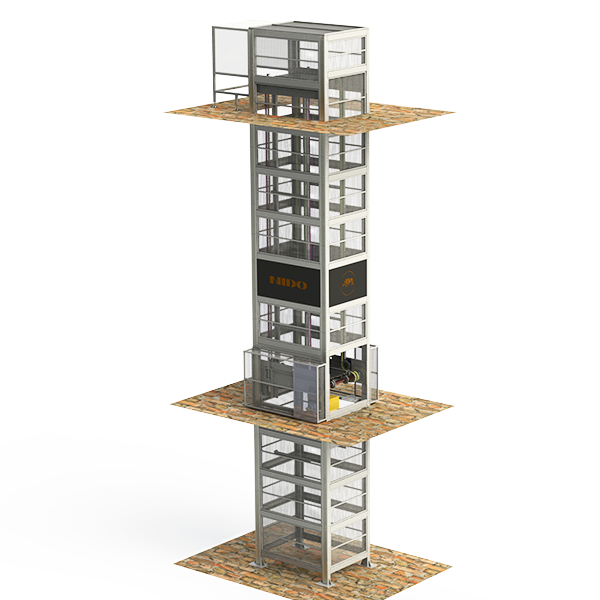

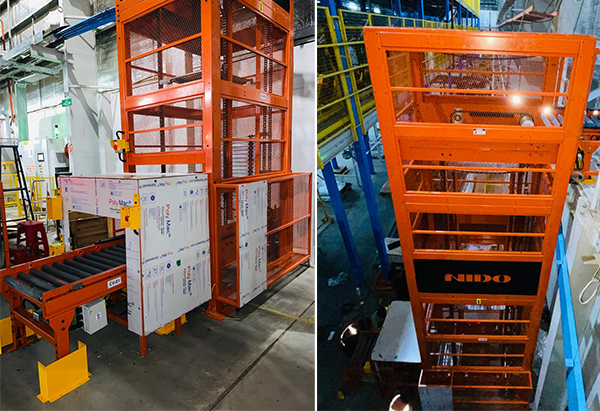

NIDO’s CVLC is a compact, high-throughput solution for vertical parcel movement across levels.

Powered by a PLC-based control system, it’s ideal for space-saving automation in modern warehouses and fulfillment centers.

  • Material Compatibility: Cartons, totes, trays, parcels

  • Throughput: Up to 1200 parcels/hour

  • Lifting Height: upto 12 mtr

  • Max. Speed: 24 m/min

  • Power Supply: 440 VAC, 50 Hz, 3-Phase

Parameter Specification
Max. Carriage Size 700 x 700 mm
Min. Parcel Size 200 x 200 x 30 mm
Max. Parcel Size 600 x 600 x 600 mm
Parcel Type Box, Non-Box & Postal Package
Max. Throughput 1200 parcels/hour
Max. Speed 24 meters/min
Weight Range 0.05 – 50 kg
Min. Infeed Level 750 mm
Max. Lifting Height 12,000 mm
Lifting Mechanism Chain & Sprocket
Peripheral Equipment Infeed & Outfeed Conveyor
Dimensioning System Camera-Based
Dimension Resolution 1 mm
Dimension Accuracy ± 5 mm
Power Supply 440 VAC, 50 Hz, 3-Phase
Control System PLC Based – Siemens / Mitsubishi
Control Voltage 24 VDC
Reciprocating Feature Available
Machine Footprint (L x W) 1230 x 1570 mm
