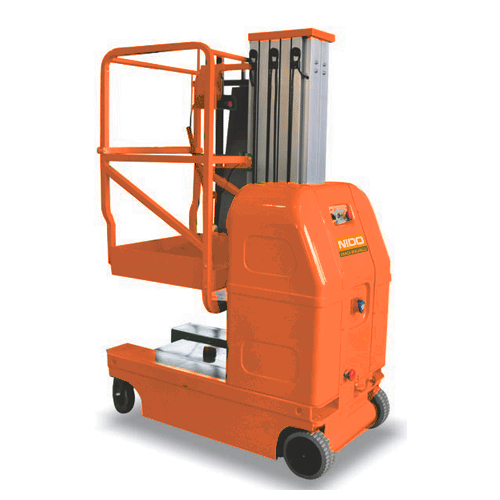

NIDO mobile single mast aluminium work platforms are widely used to for the installation and maintenance of the narrow spaces such as hotels, modern workshops, business halls, lobbies, railway stations etc. Low energy consumption, no pollution, no damage to the grounds. Mainly to be used for indoor maintenance, repair work User can control the lifting operation directly from the platform. The aerial work platform mast structure is made with aluminium material.
| Model | ND-AWP-SP-6 (I) | ND-AWP-SP-7.5 (I) | |
|---|---|---|---|
| Lift Capacity | kg | 125 | 125 |
| Platform Occupancy Max | m | 6 | 7.5 |
| Stowed Length | m | 1.36 | 1.36 |
| Stowed Width | m | 0.79 | 0.79 |
| Stowed Height | m | 1.98 | 1.98 |
| Platform Size | m | 0.78*0.70 | 0.78*0.70 |
| Ground Clearance | m | 0.05 | 0.05 |
| Wheelbase | m | 1.15 | 1.15 |
| Gradeability | % | 25 | 25 |
| Maximum Working Slope | ° | 1.5 | 1.5 |
| Driving Wheel | m | 0.23*0.08 | 0.23*0.08 |
| Front Tyre | in | 8 | 8 |
| Driving Motor | V/kw | 2*24/0.4 | 2*24/0.4 |
| Lifting Motor | V/kw | 24-Feb | 24-Feb |
| Power Source | V/Ah | 2*12/120 | 2*12/120 |
| Charger | V/A | 24-Dec | 24-Dec |
| Weight | kg | 850 | 880 |
Standard Configuration:
For different working purpose & working condition, it can be changed to
STANDARD FEATURES
OPTIONAL FEATURES
