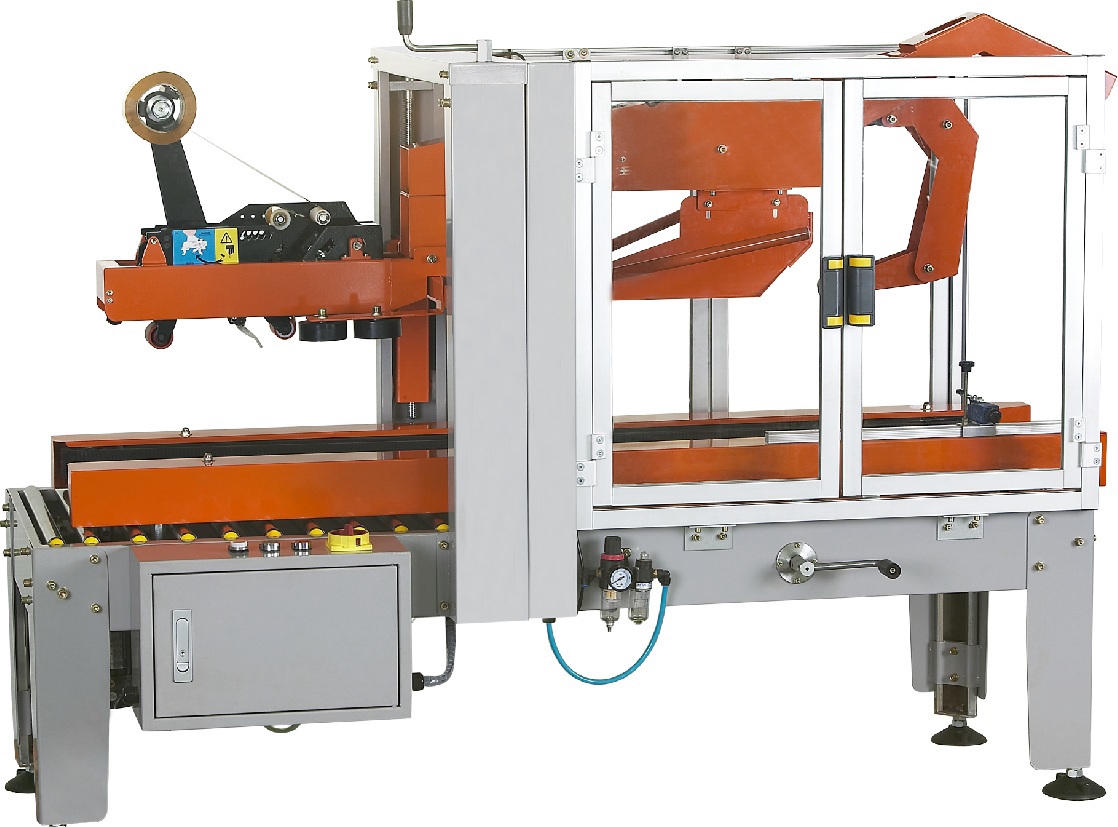

Semi Automatic Flap Folding Carton Sealer

Model Number : ND-EOLP-CS-FJ-3AW
HSN Code : 84224000
Stock: In-Stock
Main Specs : Seals top & bottom flaps, folds top side flaps, carton size can be adjusted manually, 12-15 cartons/per min tapping speed
SKU: ND-EOLP-CS-FJ-3AW Categories: ,

TECHNICAL SPECIFICATIONS

Model No. ND-EOLP-CS-FJ-3AW
Power SupplyV/Hz1p 220V 50Hz, 400W
Taping Speedcartons/min20 m/min,
8-10 cartons per min
(depends on carton size)
Compressed Air Pressurebar6 (compressor in customer scope)
Min. Carton Size (L×W×H)mm200 x 150 x 127
Max. Carton Size (L×W×H)mm550 x 480 x 480
Adhesive Tape Size & Materialmm48 / 72 (KRAFT / BOPP)
External Dimension (L×W×H)mm1650 x 1000 x 1370
Net WeightKg360

FEATURES

  • Automatically seals top bottom flaps.
  • Automatically fold top side flaps
  • Manual adjusted carton sizes
