Model Number : ND-OP-SP SERIES
HSN Code : 76109090
Stock: In-Stock

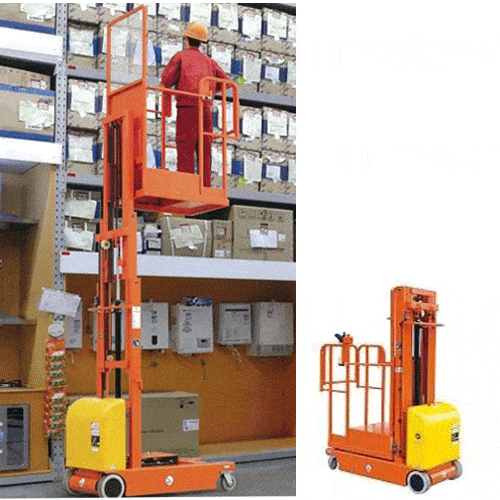

Main Specs : Nido self propelled order picker is an ergonomically designed for material picking and movement making it convenient to use in supermarket and warehouses.
Self Propelled Order Picker
Send Enquiry
Categories: Material Handling Equipment, Order Pickers & Ladders
Description
Nido self propelled order picker is an ergonomically designed for material picking and movement making it convenient to use in supermarket and warehouses.
TECHNICAL SPECIFICATIONS
| Model No. | ND-OP-SP-2-4.5 | ND-OP-SP-3-3(II) | ND-OP-SP 3 - 3.5 (II) | ND-OP-SP 3 - 4.5 (III) | |
|---|---|---|---|---|---|
| S.W.L. | kg | 200 | 300 | 300 | 300 |
| Working Height (H1) | m | 6.5 | 5 | 5.5 | 6.5 |
| Platform Floor Height (H2) | m | 4.5 | 3 | 3.5 | 4.5 |
| Overall Length (A) | m | 1.3 | 1.56 | 1.56 | 1.5 |
| Overall Width (C) | m | 0.84 | 0.76 | 0.76 | 0.76 |
| Overall Height (B) | m | 1.99 | 1.64 | 1.64 | 1.99 |
| Platform Size | m | 0.90*0.64 | 0.93*0.70 | 0.93*0.70 | 0.93*0.70 |
| Ground Clearance | m | 0.03 | 0.04 | 0.04 | 0.04 |
| Wheelbase | m | 0.77 | 1.23 | 1.23 | 1.23 |
| Turning Radius | - | 0 | 0 | 0 | |
| Drive Motors | VDC / kw | - | 2*24/0.4 | 2*24 / 0.4 | 2*24 / 0.4 |
| Lifting Motors | VDC / kw | 12/1.6 | 24-Feb | 24-Feb | 24-Feb |
| Travel Speed (Stowed) | km/h | - | 4 | 4 | 4 |
| Travel Speed (Raised) | km/h | - | 1.1 | 1.1 | 1.1 |
| Up / Down Spees | sec | 22/17 | 24/21 | 24 / 21 | 24 / 21 |
| Batteries | V/Ah | 12/120 | 2*12/120 | 2*12 /120 | 2*12 / 120 |
| Integrated Charger | V/A | Dec-15 | 24-Oct | 24-Oct | 24-Oct |
| Grade Ability | % | - | 0.25 | 25 | 25 |
| Maximum Slope | Degree | - | 1.5 | 1.5 | 1.5 |
| Tyres (Drive Motors) | mm | 150*56 | 230*80 | 230*80 | 230*80 |
| Tyres (Front Wheels) | 6 | 6 | 6 | 6 | |
| Weight | kg | 424 | 642 | 624 | 682 |
FEATURES
- The light weight and maneuverability make it convenient to use in supermarket and warehouse
- 25% grade ability when driving on slopes
- Zero-turn radius and compact design (1.53m*0.70*) provide access in and around confined work areas
- On-board diagnostic help operators troubleshoot on the fly and make adjustments in the field to maximize uptime
