Hydraulic System adds a safety wedge block and an overload protection to effectively protect the safety of operators and materials.

Flexible & Convenient Maintenance, anti-clipping scissor fork design. Rising and falling processes are even & smooth. Compact structure, treadle hydraulics can lift the table

Use of high-quality steel, higher than domestic industry standard

Handle is ergonomically designed from the height range, easy to move.

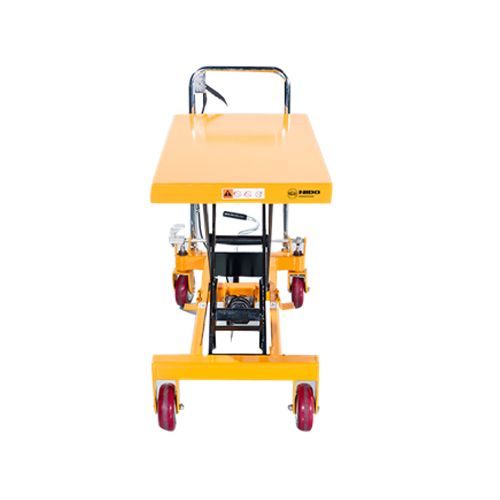

NIDO scissor lift table truck can be used for handling or working platforms. It’s compact body design, fast lift pump action, can save time and improve labor efficiency. Widely used in factories, workshops, warehouses, supermarkets etc.

TECHNICAL SPECIFICATIONS

Model No. ND-SLTT-150CND-SLTT-350DCND-SLTT-500CND-SLTT-1000CND-SLTT-800DCND-SLTT-1000DCND-SLTT-1500DC
Load Capacitykg150350500100080010001500
Lowest Heightmm210350280415450500500
Max. Heightmm7201300/15009001000150017001700
Table Dimensionsmm700*450*35905*500*50815*500*501016*510*601200*610*601200*610*801200*610*80
Dia. of the Wheelmm¢100¢125¢125¢150¢125¢150¢150
Net Weightkg4010682112150225225
Packing Dimensionsmm820*470*2301010*520*380900*510*3101140*570*4501380*610*4601370*610*5001370*610*500

FEATURES

  • Foot pedal operated hydraulic lifting.
  • Ergonomically designed lifter and transporter features.
  • Handy hydraulic feet pump to elevate formed-edge platform, reducing strain and fatigue.
  • Used for lifting, transporting, positioning, assembling, stacking and un-stacking.
  • Easy to operate brake keeps unit stationary while loading and unloading, while the lowering valve provides precise lowering.
  • Steel construction with platform made from steel sheet, chrome plated handle.
