Model Number : ND-AWP-M-14 (III) AC, ND-AWP-M-16 (IVII) AC, ND-AWP-M-18 (IVII) AC
HSN Code : 84289090
Stock: In-Stock
Main Specs : Push Around / Pulling Device, Outrigger Sensors, platform extension, Solid tyres as standard

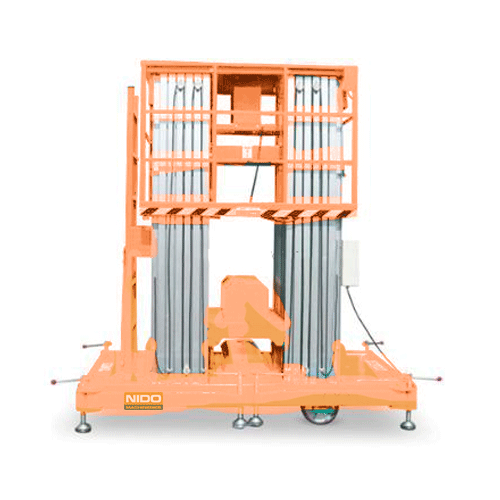

Multi Mast Mobile Aluminium Work Platform
Description
NIDO mobile single mast aluminium work platforms are widely used to for the installation and maintenance of the narrow spaces such as hotels, modern workshops, business halls, lobbies, railway stations etc. Low energy consumption, no pollution, no damage to the grounds. Mainly to be used for indoor maintenance, repair work User can control the lifting operation directly from the platform. The aerial work platform mast structure is made with aluminium material.
TECHNICAL SPECIFICATIONS
| Model | ND-AWP-M-14 (III) | ND-AWP-M-16 (IVII) | ND-AWP-M-18 (IVII) | |
|---|---|---|---|---|
| Lift Capacity | kg | 250 | 150 | 150 |
| Platform Occupancy Max | m | 2 | 1 | 1 |
| Working Heigth Max | m | 16 | 18 | 20 |
| Platform Height Max | m | 14 | 16 | 18 |
| Stowed Length | m | 1.92 | 2.28 | 2.28 |
| Stowed Width | m | 1.1 | 1.6 | 1.6 |
| Stowed Height | m | 2.32 | 2.18 | 2.42 |
| Platforn Size | m | 1.63*0.88 | 1.45*1.1 | 1.45*1.1 |
| Outrigger Footprint | m | 2.5*2.4 | 3.2*3.0 | 3.2*3.0 |
| Ground Clearance | m | 0.15 | 0.15 | 0.15 |
| Lifting Motor (AC) | kw | 2.2 | 2.2/1.1 | 2.2/1.1 |
| Weight (AC) | kg | 1100 | 1450 | 1650 |
| Optional Power Source | V/Ah | 24/120 | 24/120 | 24/120 |
| Optional Lifting Motor (DC) | kw | 2.2 | 2.2/0.8 | 2.2/0.8 |
| Optional Charger | V/A | 24/15 | 24/15 | 24/15 |
FEATURES
Standard Configuration:
- Auxiliary Lowering Device
- Big Level Guage
- Emergency Stop Button
- Anti-burst System
- Limit Switches
- Short Circuit & Leakage Protection System
For different working purpose & working condition, it can be changed to;
- With Pulling Device a Type: Equipped with an electric pulling device with moving and turning function.
- Towing Type: Equipped in chassis heightening design with inflammable wheels for convenient moving.
- Truck-mounted Type: Installed in the bed cover of pickup or trucks for long distance aerial working.
- Insulated Type: Work Platform is made of insulating material for places required insulated condition.
- Flameproof Type: Three key parts made for explosion proof purposes: electric box, socket, and plug for special places which require explosion proof circumstances.
Mobile Aluminium Work Platform Features List
STANDARD FEATURES
- AC Power Supply – 220 V 50/60 Hz, Single Phase
- 5-meter Long Cable
- Safety Sticker, Radium Stickers, Name Plate
- Key Lock Power Switch
- Rain Proof Cover for Ground Control Box
- Toe Protection Boards on the Platform
- Anti-skid Floor on the Platform
- Hydraulic Power Pack
- Beacon Light
- Level Gauge
- Dual Operation on both Platform and Ground
- Auxiliary Lowering
- Dual Limit Switch for Safety
- Anti-dust cover on the Mast
- Anti-burst Valve on the Cylinder
- Emergency Stop Button on Ground and Platform
- Short Circuit and Leakage Protection System
- Overloading System
- Cylinder Holding Valve
- Forklift Slot
- Lifting Hook
- PU/Rubber Tyre
- Operation Voltage at 24V
- Safety Belt Holding
- Lockable Stabilizer
- Swing Type Outrigger with Lock Pin
- Powder Coating Painting
- Spring Mounted Handle
- Foldable Fence
OPTIONAL FEATURES
- Detachable Outrigger
- DC Power Supply with
- Battery Indicator
- Hour Meter
- Charging Indicator
- Charger
- Fuse
- Battery Indicator
- AC & DC Power Supply
- Motorized Device for Easy Pulling
- Bigger Wheel
- Foot Guard
- Electric-mechanical Brake
- Belly Switch
- Bigger Wheel for Single Mast
- Outrigger Sensor
- Explosion Proof Type – 380V Only
- Towing Type can be made to Connect to The Truck
- Truck Mounted Type
- Manual Power by Foot
- Stainless Steel Fence
- Wireless Tracking
- Tilting Arm
- Horn on the Platform
- AC Power to the Platform
- Platform Working Light
- Hinge Type Top Door on the Fence
- Machine Body Cover
- Platform Extension
