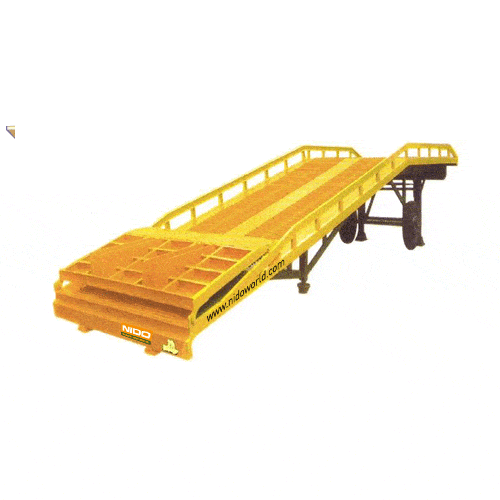

Mobile Ramp

Model Number : ND-MRAMP-10SERIES

HSN Code : 84289090

Stock: In-Stock

Main Specs : Enhances loading & unloading efficiency greatly, Manual hydraulic controls, Fold-able tires, Convenient to move and change working location. Mobile dock ramp can be applied on sundry occasions such as the position in the non-loading platform, not fixed load and unload location, narrow load and unload ground and so on. Mobile forklift truck and other transporting facilities can enter into the truck to carry on loading and unloading directly.

Download Brochure

Watch Video

Description

Nido mobile dock ramp with 10000 kgs capacity is an ergonomically designed for loading and unloading of goods.

TECHNICAL SPECIFICATIONS

1. Movable Ramp
2. Fix Ramp
3. Hand Pump
4. AC Motor
5. Hydraulic Lift Cylinder
6. Rubber Tyre Wheel
7. Floor Lock
9. CI Swivel Wheel
9. Flap Cylinder
10. Railing

Model No.		ND-MRAMP-10 Manual
Capacity	kg	10000
Platform Size
A	mm	8102
B	mm	2220
C	mm	800
D	mm	320
E	mm	11500
F	mm	1879
G	mm	2000
H	mm	1200
I	mm	1700
Distance from the Centre of Wheel	mm	7018

FEATURES

Mobile dock ramp can be applied on sundry occasions such as the position in the non-loading platform, not fixed load and unload location, narrow load and unload ground and so on.

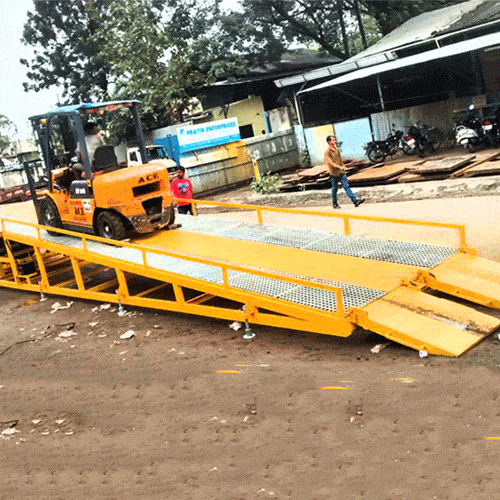

Mobile forklift truck and other transporting facilities can enter into the truck to carry on loading and unloading directly.
Provided with manual hydraulic controls.
Tires can be folded to lift off when the dock is in use and let down when you need to move the mobile dock.
Easy and convenient to move and change the working location of the mobile dock by the manpower.
