Description

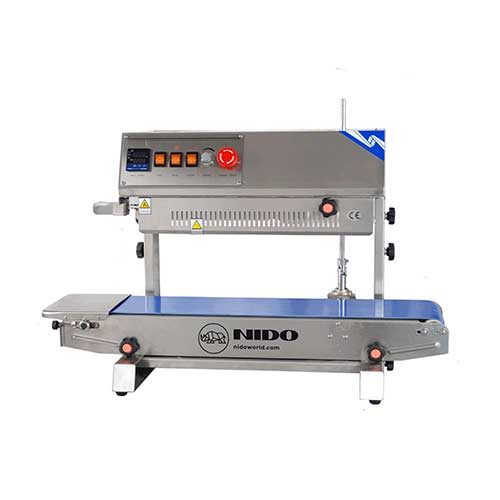

Nido horizontal band sealer is suitable for sealing all types of plastic materials and bags. One of our most popular band sealers with a great value proposition. Industrial-grade machines designed for light-duty continuous bag sealing applications. It will seal bags made with thermoplastic materials including Polyethylene (PE), Polypropylene (PP) and heat-sealable laminations.
TECHNICAL SPECIFICATIONS
| Nido Horizontal Band Sealers | ND-BS-770I MS | ND-BS-770I SS | |
|---|---|---|---|
 |  | ||
| Volatge | V/Hz | AC 220/50 110/60 | AC 220/50 110/60 |
| Power | W | 50 | 50 |
| Sealing Power | W | 300 x 2 | 300 x 2 |
| Sealing Speed | m/min | 0-12 (0- 16) | 0-12 (0- 16) |
| Sealng Width | mm | 10 | 10 |
| Temperature Range | ℃ | 0-300 | 0-300 |
| Distance from Sealing Center to Conveyor Table | mm | 20 - 40 | 20 - 40 |
| Conveyor Size (L*W) | mm | 840 × 153 | 840 × 153 |
| Max. Conveyor Loading for Single Package | kg | ≤1 | ≤1 |
| Overall Conveyor Loading | kg | ≤3 | ≤3 |
| External Dimensions (l*W*H) | mm | 840 × 380 × 320 | 840 × 380 × 320 |
| Net Weight | kg | 23 | 23 |
| Housing | Mild Steel | Stainless Steel | |
| Printing Type | Steel Wheel Embossing Printing (Optional) | Steel Wheel Embossing Printing (Optional) |
| Nido Vertical Band Sealers | ND-BS-770II MS | ND-BS-770II SS | |
|---|---|---|---|
 |  | ||
| Volatge | V/Hz | AC 220/50 110/60 | AC 220/50 110/60 |
| Power | W | 50 | 50 |
| Sealing Power | W | 300*2 | 300*2 |
| Sealing Speed | m/min | 0-12 | 0-12 |
| Sealng Width | mm | 10 | 10 |
| Temperature Range | ℃ | 0-300 | 0-300 |
| Printing Type | Steel Wheel Embossing Printing (Optional) | Steel Wheel Embossing Printing (Optional) | |
| Distance from Sealing Center to Conveyor Table | mm | 150 - 270 | 150 - 270 |
| Conveyor Size (L*W) | mm | 840*153 | 840*153 |
| Max. Conveyor Loading for Single Package | kg | ≤1 | ≤1 |
| Overall Conveyor Loading | kg | ≤3 | ≤3 |
| External Dimensions (l*W*H) | mm | 840*380*270 | 840*380*270 |
| Net Weight | kg | 32 | 32 |
| Housing | Mild Steel | Stainless Steel |
FEATURES
- Easy to operate – minimal operator training
- Fast warm up time
- Seals any thermoplastic material including PE, PP, and laminates
- Motorized rubber conveyor with speed control
- Knurled pressure wheel rolls with variable pressure adjustment
- One pair each of cooling and heating blocks
- Sealing method – constant direct heat
- Unit feeds right to left
- Equipped with an emergency stop button
- Can easily be converted to a vertical configuration with an optional converting kit
