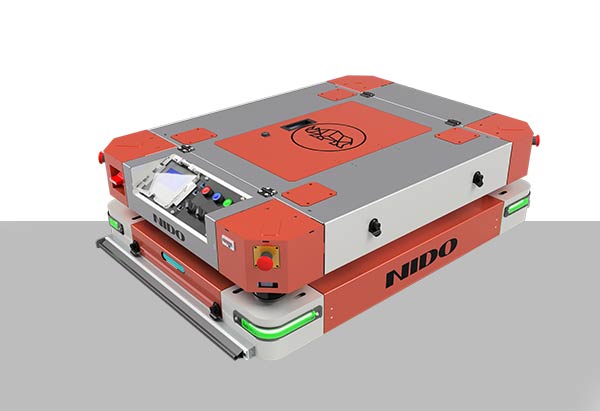

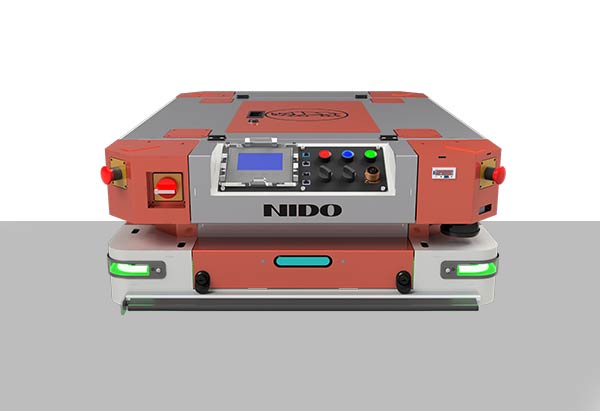

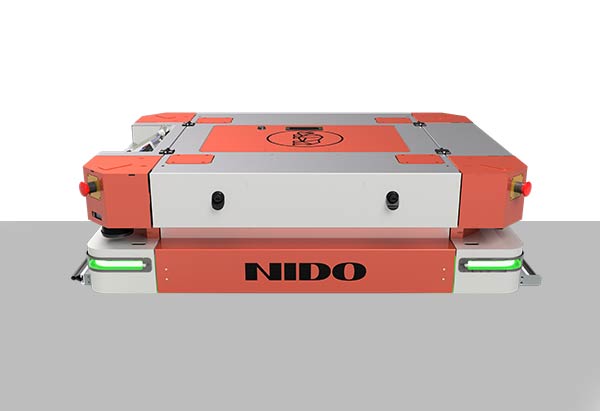

SIRIUS 1500 Autonomous Mobile Robots (AMRs)

SIRIUS 1500 is a beast. With a body built for the extremes, it can carry upto 1500 kgs with natural navigation. Powered with NIDONav, this robot runs on a fail architecture that is tested rigorously in the chaos of Indian Industries.

  • Attachments: Roller Conveyor, Dual Belt Conveyor, Trolley Tunneling, Lifter.

  • Navigation: 2D LiDAR sensor (Natural Navigation)

  • Safety features: 2D Laser Scanner, Ultrasonic Sensor, Optional Contact Type Safety sensor, 2 Emergency Stop Buttons.

  • Charging Method: Easy Battery Swap & Auto Dock Charging.

  • Gadgets: Display, Call Station Integration, Envelope Safety.

SIRIUS 1500 Mechanical Specifications
S. No.CategorySpecifications
1AGV Dimensions1800 x 1100 x 400 mm
2General Rated Payload1500
3Robot weight (kg)500
4Weight (with battery)550
5Chassis ground clearance20 mm
6NavigationNatural Navigation
7MotionBidirection
8Max Speed (Without Load)1.5 m/s
9Max Speed (With Load)1.2m/s
10Turning Radius0 (In Place turn with Load is possible)
11AGV ColourDual Colour Scheme – NIDO Orange (RAL 2012) and
Black (RAL 8022)
12Drive ModeDifferential Drive
13Rotation diameter1200mm
14Laser scanning height150 mm
SIRIUS 1500 Performance Parameters
S. No.CategorySpecifications
1Passability (slope/step/gap)2-5 Degree
2MIN. passable width1800 mm
3Navigation position accuracy30mm +-
4Navigation angle accuracy3 degree +-
5Navigation speed (Average Recommended)0.8 m/s
6Map area (single frame)500000 sq feet
7Service Life10 Years
8Gradient of Floor1 : 12
9Operating Temperature5 to 45°C
10Humidity96%
11IP Grade31
12Industrial Standard ComplianceANSI B56
13Individual Components - Certification AdherenceYes
14Static DischargingYes
SIRIUS 1500 Electrical and Network Ratings
S. No.CategorySpecifications
1AGV voltage Rating48V
2Minimum Runtime (50 % Duty cycle)6 hours
3Battery TypeVRLA/Li Ion
4Charging MethodManual Battery Swap/ Autodock charging
5Battery specifications48V 50 Ah
6Battery charging time3 hours
7Comprehensive battery life8 Hours
8Charging time (10-80%)2 Hours
9Battery cyclesMin 2000
10NetworkEthernet / Wi-Fi 802.11 a/b/g/n/ac
11WiFi ClientYes
SIRIUS 1500 Safety Parameters
S. No.CategorySpecifications
1Emergency Stops2
2Provision to move the AGV on BreakdownYes
3Static DischargingYes
4Debris Protection using Bumper and BrushOptional
5Teach PendantYes
6Number of lidar2
7Number of low-position obstacle avoidance photoelectric4
8Cargo detectionOptional
9SpeakerYes, Configurable
10Bumper stripOptional
11High Accuracy Positioning System20 +- mm accuracy

SIRIUS 1500 is a beast. With a body built for the extremes, it can carry upto 1500 kgs with natural navigation. Powered with NIDONav, this robot runs on a fail architecture that is tested rigorously in the chaos of Indian Industries.
It can pull a trolley of upto 1750 kgs with ease. Integrate SIRIUS robots with call station, warehouse management system or manufacturing and experience smooth material movement across your factory floor.

Installing a SIRIUS 1500 requires no changes to the layout. It can swiftly be integrated with any existing setup in manned or unmanned areas.
Robots in this series are capable of handling their own battery and charging systems. With easy battery swap or with Auto Dock charging solution, you can choose a robot that fits perfectly in your operations.
SIRIUS 100 is completely designed, programmed and manufactured in-house by NIDO, giving us the edge to customize our solutions for your needs. With the power of NIDOFleet, you can now run multiple robots in your facility with perfect co-ordination

  • Can be deployed with minimum infrastructure modifications – Our SIRIUS series AMRs are intelligent enough to seamlessly integrate into your existing process to create a friendly ecosystem.
  • Allows businesses to target skilled labour shortage. Our SIRIUS series AMRs provide a safe and secure passage of materials inside your distribution centers which helps to increase the process efficiency and performance with minimal human intervention.
  • Rely on throughput and delivery rather than process, Hence ideal solution for logistics, e-commerce and warehousing industry.
  • Safely and efficiently maneuvers around operators and obstacles.
  • Modular and scalable with a variety of connectivity modules.
  • Can be customized with multiple attachments for specific application needs.
  • User friendly software to manage and monitor the robot from a single interface with analytics option.
  • ROI in 1.5 to 2.5 years.

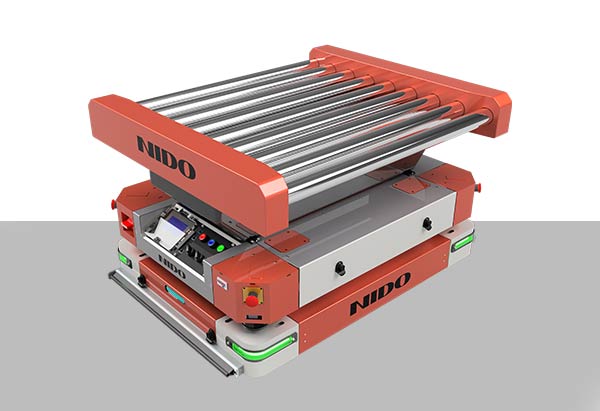

SIRIUS 1500 Roller Power Conveyor
1Height of conveyor by Defualt400mm (Customizable)
2Loading Space Available630 x 430
3Conveyor Avg Speed0.2 m/s (Customizable)
4Weight of Conveyor35 kg
5Safety on ConveyorState Checks for Loaded/Unloaded

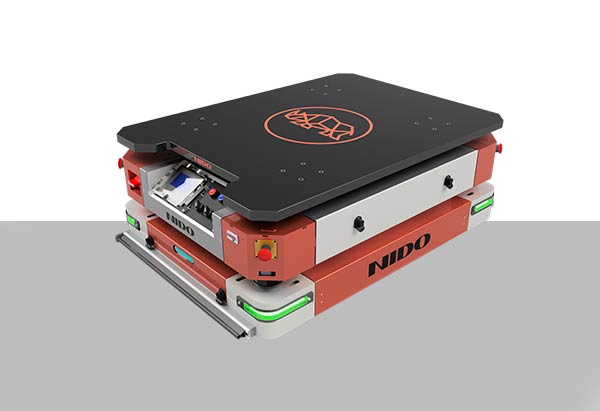

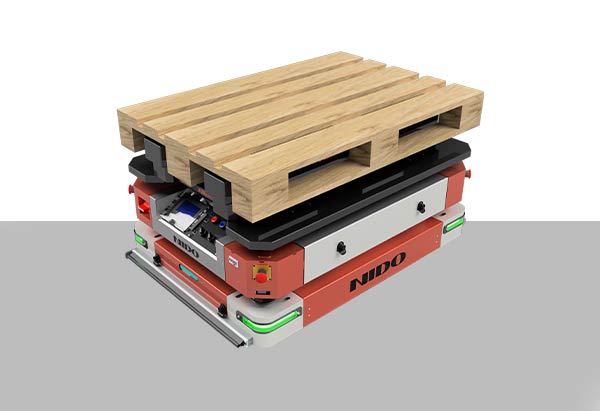

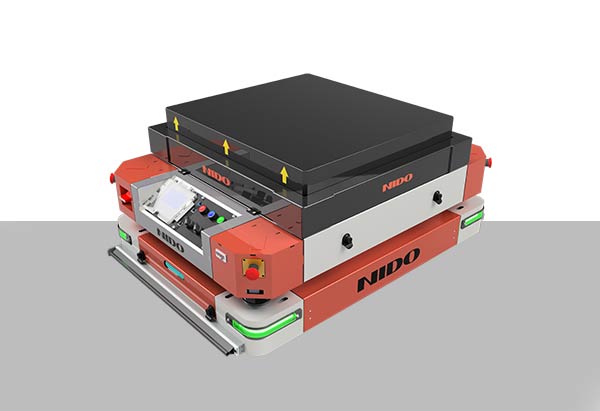

SIRIUS 1500 Lifter
1MAX. lifting height60 mm
2Lifting time2 seconds
3Lifting platform dimensions630 x 430
4Distance between trolley legs required500 mm
5Minimum height of trolley base

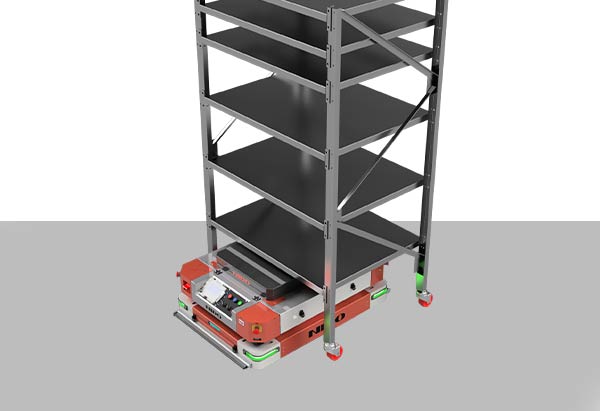

SIRIUS 1500 Tunneling
1Minimum Height of Trolley Base250
2Minimum Distance between
trolley legs required
550
3Trolley AttachmentProvided by NIDO

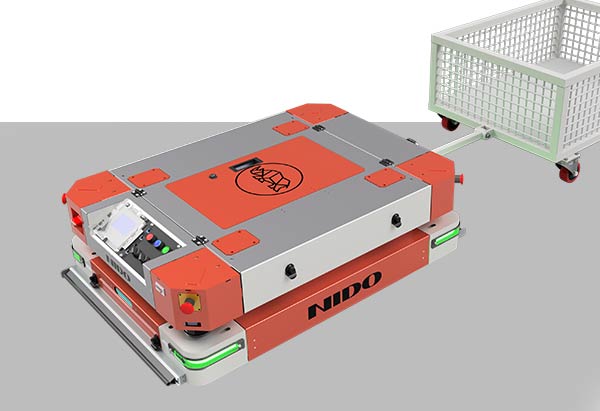

SIRIUS 1500 Manual Tugging
1Trolley Requirement2 Swivel and 2 Fixed Castor
2Trolley AttachmentProvided by NIDO
3Towing Capacity150 kg
SIRIUS 1500 Add-ons
S. No.Category
1Roller Power Conveyor
2Trolley Tunnelling
3Trolley Tugging
4Lifter
5Display
6Envelope Safety
7Easy Battery Swap
8Auto Dock Charging

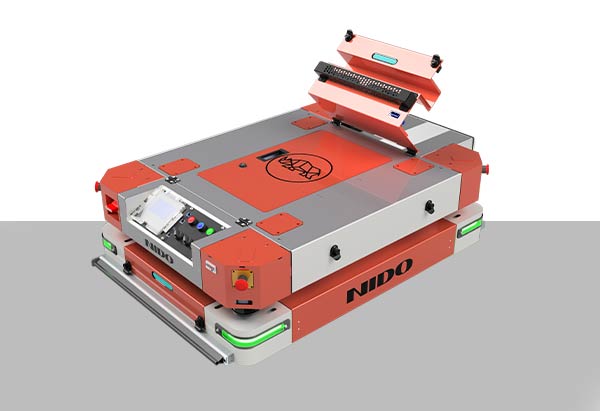

  • Manual Battery Swap

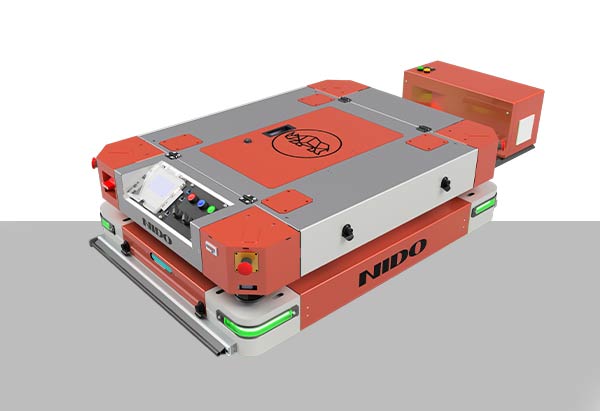

  • Autodock Charging
