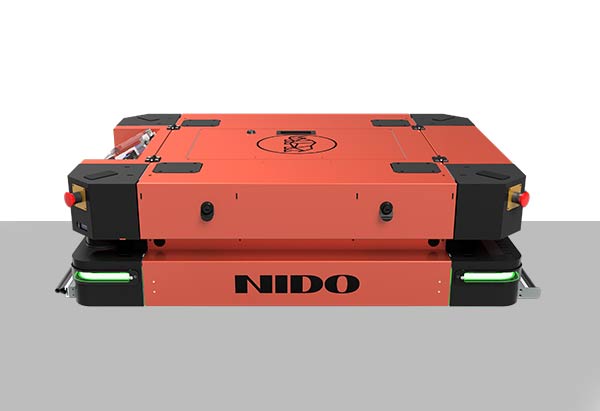

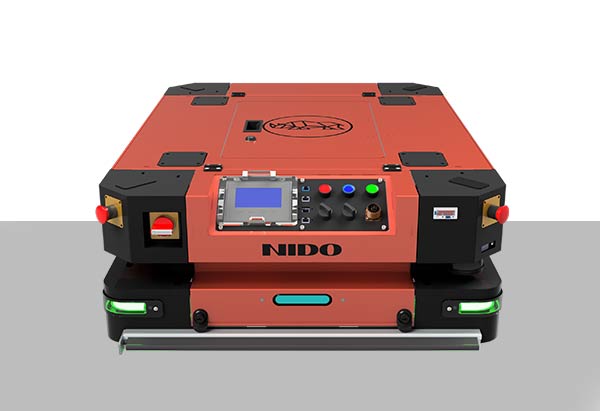

ERIS 500 Automated Guided Vehicle (AGV)
ERIS 500 is a heavy duty Automated Guided Vehicle capable of transporting upto 500 kgs with a fixed path navigation utilizing magnetic tape, colour tape & RFID tag. Powered with NIDONav, this robot runs on a fail architecture that is tested rigorously in the chaos of Indian Industries.
Attachments: Roller Conveyor, Dual Belt Conveyor, Trolley Tunneling, Lifter.
Navigation: Magnetic tape, QR code, RFID.
Safety features: Collision Avoidance, Emergency Stop, Visual & Audible Warnings, Front & Back Safety Sensors.
Charging Method: Easy Battery Swap & Auto Dock Charging.
Gadgets: Display, Call Station Integration, Envelope Safety.
| ERIS 500 Mechanical Specifications | ||
|---|---|---|
| S. No. | Category | Specifications |
| 1 | AGV Dimensions | 1200 x 750 x 350 mm |
| 2 | General Rated Payload | 500 |
| 3 | Robot weight (kg) | 250 |
| 4 | Weight (with battery) | 50 |
| 5 | Chassis ground clearance | 20 mm |
| 6 | Navigation | Tape Guided Navigation |
| 7 | Motion | Bidirection |
| 8 | Max Speed (Without Load) | 1.5 m/s |
| 9 | Max Speed (With Load) | 1.2m/s |
| 10 | Turning Radius | 0 (In Place turn with Load is possible) |
| 11 | AGV Colour | Dual Colour Scheme – NIDO Orange (RAL 2012) and Black (RAL 8022) |
| 12 | Drive Mode | Differential Drive |
| 13 | Rotation diameter | 800mm |
| 14 | Laser scanning height | 150 mm |
| ERIS 500 Performance Parameters | ||
|---|---|---|
| S. No. | Category | Specifications |
| 1 | Passability (slope/step/gap) | 2-5 Degree |
| 2 | MIN. passable width | 1000mm |
| 3 | Navigation position accuracy | 30mm +- |
| 4 | Navigation angle accuracy | 3 degree +- |
| 5 | Navigation speed (Average Recommended) | 0.8 m/s |
| 6 | Service Life | 10 Years |
| 7 | Gradient of Floor | 1 : 12 |
| 8 | Operating Temperature | 5 to 45°C |
| 9 | Humidity | 96% |
| 10 | IP Grade | 31 |
| 11 | Industrial Standard Compliance | ANSI B56 |
| 12 | Individual Components - Certification Adherence | Yes |
| 13 | Static Discharging | Yes |
| ERIS 500 Electrical and Network Ratings | ||
|---|---|---|
| S. No. | Category | Specifications |
| 1 | AGV voltage Rating | 48V |
| 2 | Minimum Runtime (50 % Duty cycle) | 6 hours |
| 3 | Battery Type | VRLA/Li Ion |
| 4 | Charging Method | Manual Battery Swap/ Autodock charging |
| 5 | Battery specifications | 48 V 40 Ah |
| 6 | Battery charging time | 3 hours |
| 7 | Comprehensive battery life | 8 Hours |
| 8 | Charging time (10-80%) | 2 Hours |
| 9 | Battery cycles | Min 2000 |
| 10 | Network | Ethernet / Wi-Fi 802.11 a/b/g/n/ac |
| 11 | WiFi Client | Yes |
| ERIS 500 Safety Parameters | ||
|---|---|---|
| S. No. | Category | Specifications |
| 1 | Emergency Stops | 4 |
| 2 | Provision to move the AGV on Breakdown | Yes |
| 3 | Static Discharging | Yes |
| 4 | Debris Protection using Bumper and Brush | Optional |
| 5 | Teach Pendant | Yes |
| 6 | Number of lidar | 2 |
| 7 | Number of low-position obstacle avoidance photoelectric | 4 |
| 8 | Cargo detection | Optional |
| 9 | Speaker | Yes, Configurable |
| 10 | Bumper strip | Optional |
| 11 | High Accuracy Positioning System | 20 +- mm accuracy |
ERIS 500 is a heavy duty Automated Guided Vehicle capable of transporting upto 500 kgs with a fixed path navigation utilizing magnetic tape, colour tape & RFID tag. Powered with NIDONav, this robot runs on a fail architecture that is tested rigorously in the chaos of Indian Industries.
It can pull a trolley of upto 250 kgs with ease. Integrate ERIS robots with call station, warehouse management system or manufacturing and experience smooth material movement across your factory floor.
Installing a ERIS 500 requires no changes to the layout. It can swiftly be integrated with any existing setup in manned or unmanned areas.
Robots in this series are capable of handling their own battery and charging systems. With easy battery swap or with Auto Dock charging solution, you can choose a robot that fits perfectly in your operations.
ERIS 500 is completely designed, programmed and manufactured in-house by NIDO, giving us the edge to customize our solutions for your needs. With the power of NIDOFleet, you can now run multiple robots in your facility with perfect co-ordination
- Can be deployed with minimum infrastructure modifications – Our AGVs are intelligent enough to seamlessly integrate into your existing process to create a friendly ecosystem.
- Allows businesses to target skilled labour shortage.
- Our AGVs provide a safe and secure passage of materials inside your distribution centers which helps to increase the process efficiency and performance with minimal human intervention.
- Enables businesses to drive throughput and process delivery with scalability and flexibility.
- Current processes no longer form a bottleneck and can be adapted as per the specific needs without infrastructure modifications.
- Modular and scalable with a variety of connectivity modules.
- Can be customized with multiple attachments for specific application needs.
- User friendly software to manage and monitor the AGV fleet from a single interface with analytics option.
- ROI in 1.5 to 2.5 years.
| ERIS 500 Roller Power Conveyor | ||
|---|---|---|
 | Height of conveyor by Defualt | 400mm (Customizable) |
| Loading Space Available | 630 x 430 | |
| Conveyor Avg Speed | 0.2 m/s (Customizable) | |
| Weight of Conveyor | 35 kg | |
| Safety on Conveyor | State Checks for Loaded/Unloaded | |
| ERIS 500 Dual Belt Conveyor | ||
|---|---|---|
 | Height of conveyor by Defualt | 400mm (Customizable) |
| Loading Space Available | 630 x 430 | |
| Conveyor Avg Speed | 0.2 m/s (Customizable) | |
| Weight of Conveyor | ||
| Safety on Conveyor | State Checks for Loaded/Unloaded | |

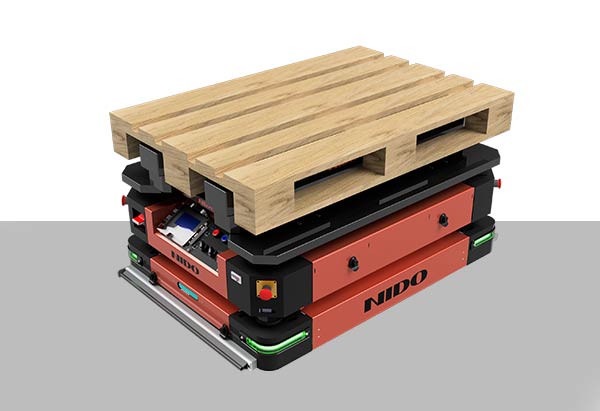

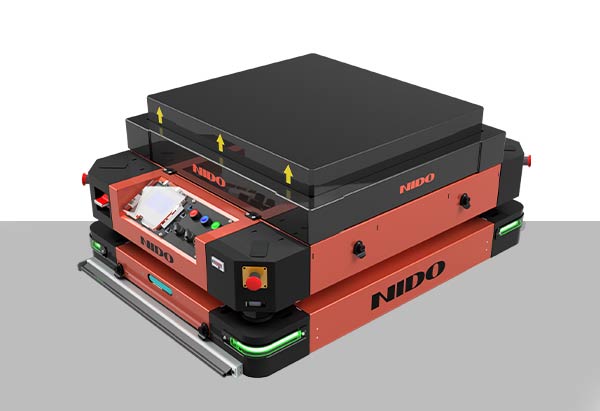

| ERIS 500 Lifter | ||
|---|---|---|
 | MAX. lifting height | 60 mm |
| Lifting time | 2 seconds | |
| Lifting platform dimensions | 630 x 430 | |
| Distance between trolley legs required | 500 mm | |
| Minimum height of trolley base | ||

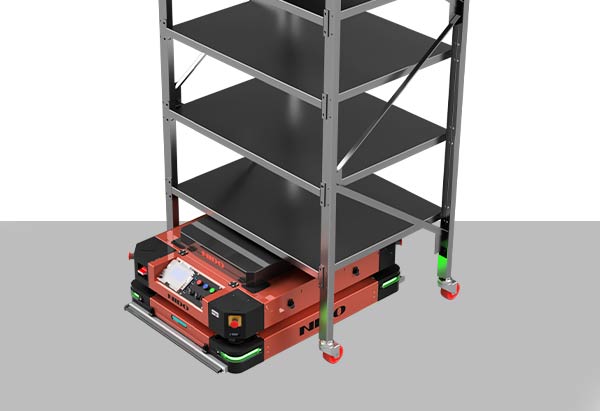

| ERIS 500 Tunnelling | ||
|---|---|---|
 | Minimum Height of Trolley Base | 250 |
| Minimum Distance between trolley legs required | 550 | |
| Trolley Attachment | Provided by NIDO | |

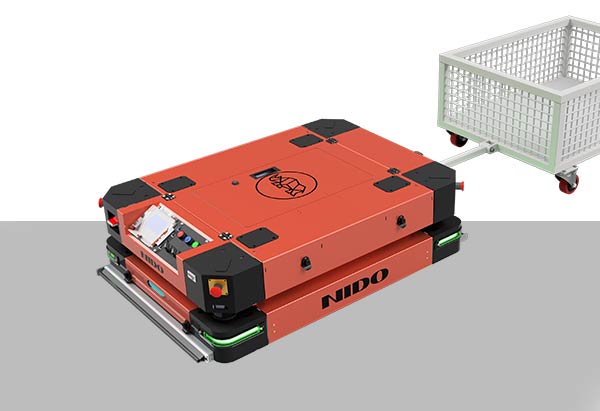

| ERIS 500 Manual Tugging | ||
|---|---|---|
| Trolley Requirement | 2 Swivel and 2 Fixed Castor | |
| Trolley Attachment | Provided by NIDO | |
| Towing Capacity | 150 kg | |
| ERIS 500 Add-ons | |
|---|---|
| S. No. | Category |
| 1 | Roller Power Conveyor |
| 2 | Dual Belt Conveyor |
| 3 | Trolley Tunnelling |
| 4 | Trolley Tugging |
| 5 | Lifter |
| 6 | Display |
| 7 | Envelope Safety |
| 8 | Easy Battery Swap |
| 9 | Auto Dock Charging |

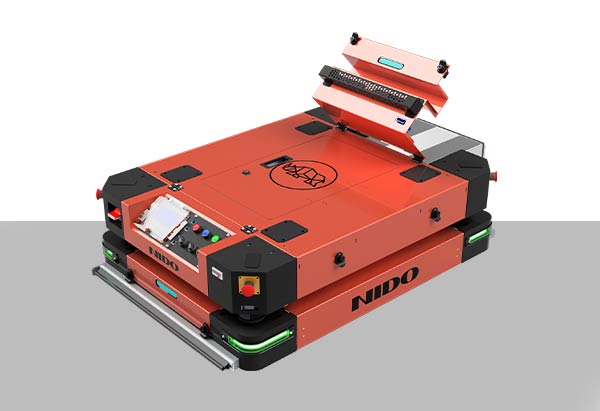

- Manual Battery Swap

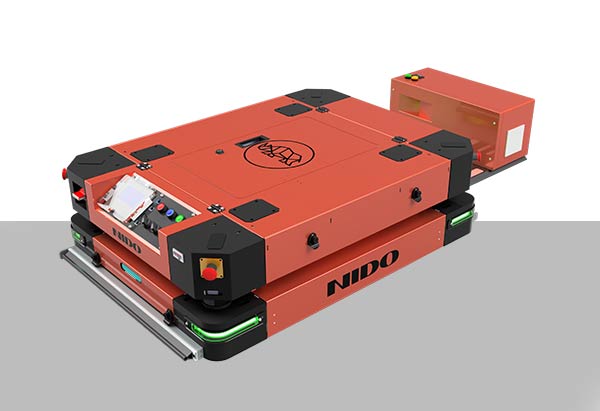

- Autodock Charging
