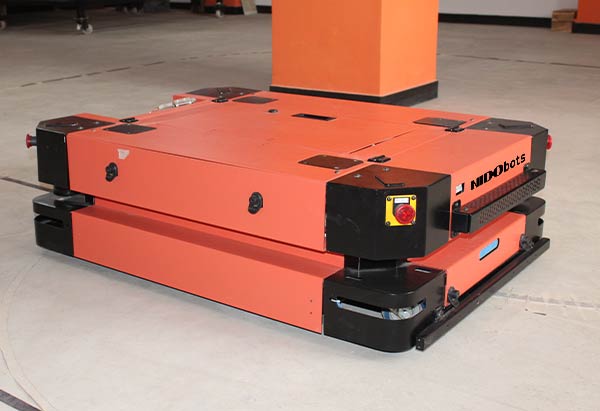

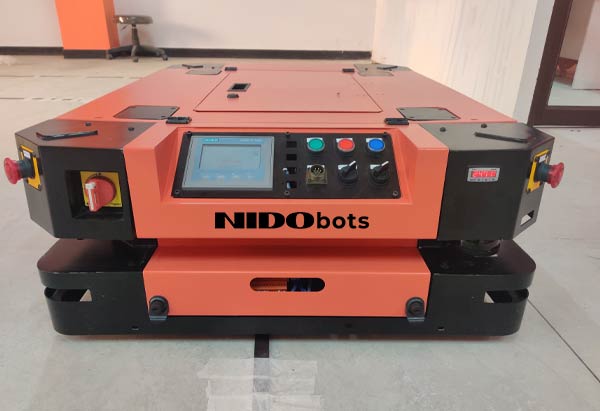

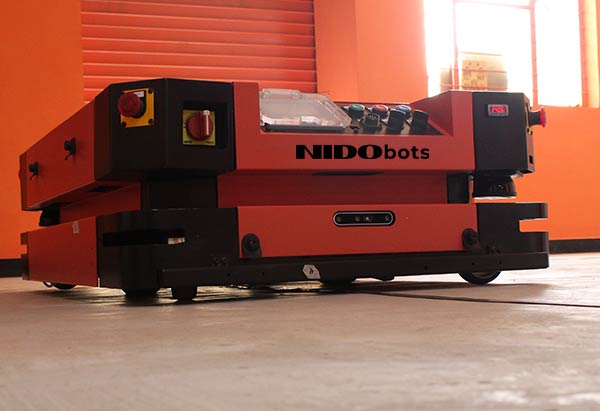

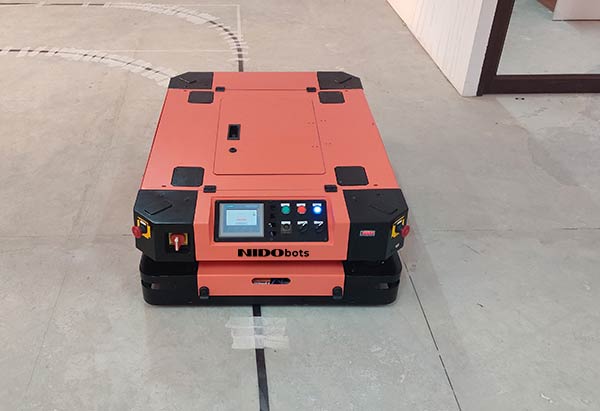

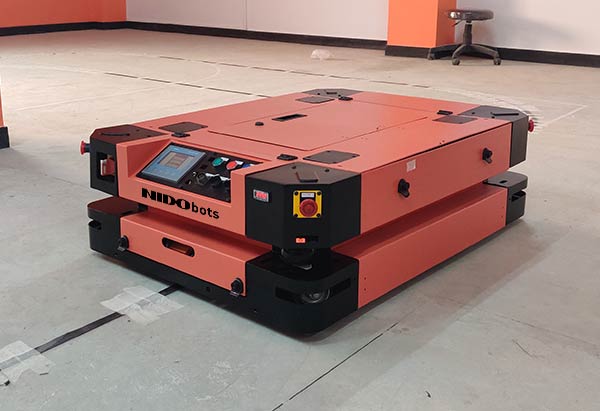

ERIS 100 / 500 / 1500 Automated Guided Vehicle (AGV)
Our ERIS Series Automated Guided Vehicle (AGV) are built with a unique modular architecture to move your material & processes. It allows for fixed path navigation utilizing magnetic tape, colour tape & RFID tag, carefully programmed by our team at the time of installation.
Modular design for faster movement.
Transportation of payloads upto 100 / 500 / 1500 kgs.
Attachment options – Lifting, tugging, conveyors & unit load.
Navigation options: magnetic tape, QR code, RFID.
Safety features: collision avoidance, emergency stop, visual & audible warnings, front & back safety sensors.
Know more about our software and control architecture: Click here
- Can be deployed with minimum infrastructure modifications – Our NIDObots series AGVs are intelligent enough to seamlessly integrate into your existing process to create a friendly ecosystem.
- Allows businesses to target skilled labour shortage.
- Our NIDObots series AGVs provide a safe and secure passage of materials inside your distribution centers which helps to increase the process efficiency and performance with minimal human intervention.
- Enables businesses to drive throughput and process delivery with scalability and flexibility.
- Current processes no longer form a bottleneck and can be adapted as per the specific needs without infrastructure modifications.
- Modular and scalable with a variety of connectivity modules.
- Can be customized with multiple attachments for specific application needs.
- User friendly software to manage and monitor the AGV fleet from a single interface with analytics option.
- ROI in 1.5 to 2.5 years.
| SPECIFICATION | ERIS 100 | ERIS 500 | ERIS 1500 |
|---|---|---|---|
| AGV Dimensions | 800 x 500 x 350 mm | 1200 x 750 x 350 mm | 1800 x 1100 x 400 mm |
| Attachments | Lift, Tug, Conveyor, Unit Load | ||
| Navigation | Magnetic Tape, RFID, QR code | Magnetic Tape, RFID | |
| Motion | Bi-Directional | ||
| Pay Load | 100 kg | 500 kg | 1500 kg |
| Towing Capacity | 250 kg | 750 kg | 2000 kg |
| Max Speed | 1.0 m/sec | ||
| Robot weight (kg) | 80 kg | 300 kg | 500 Kg |
| Turning Radius | 0 mm (On the spot turn capable) | ||
| Emergency Stops | 2 | 2 | 4 |
| Minimum Runtime (50 % Duty cycle) | 8 Hours | ||
| Battery charging time | Within 4 Hr | ||
| Battery Type | VRLA | ||
| Provision to move the AGV on Breakdown | Yes | ||
| Static Discharging | Conductive Roller Mechanism | ||
| AGV voltage Rating | 24V | ||
| Charging Type | Contact Type Auto Docking | ||
| AGV Colour | Dual Colour Scheme – NIDO Orange (RAL 2012) and Black (RAL 8022) | ||
| Display | 4 inch | ||
| Debry Protection using Bumper and Brush | Front & Rear | ||
| Teach Pendant | Manual Pendant | ||
| WiFi Client | Yes | ||
| Gradient of Floor | 2° | ||
| Service Life | 6-8 years depending on specification | ||
| Operating Temperature | 5 to 45°C | ||
| Humidity | 96% | ||
| IP Grade | 21 | ||
| Certifications | International - CE,ANSI B56 | ||
| Individual Components - Certification Adherence | Yes | ||
| Safety Features | ||
|---|---|---|
| Safety Standards | Up to SIL III | |
| Non-Contact Safety Sensor | Front LIDARs, with field switching and flexible safety zones |  |
| Protection Field | 180°-210° in direction of motion (unidirectional) 360° all around safety (bidirectional), [customizable] |  |
| Contact Safety Sensor | Front and Back | |
| Emergency Stops | 2/4 Emergency stops - Front and Back conforming with safety standards | |
| Audio and Visual Indication | Yes – Alarm Buzzer and LED with colour coding for error and alarm status | |
From the smallest detail drawings for the mechanical structures to the complete hardware and navigation architecture, we have our team of skilled engineers who can prepare a tailor-made plan as per your requirements.
- Experience a hassle free pre-sales process with our expert technical sales team.
- Integrate your human power with your robots with ease.
- Detailed Proposal and solution designing for all your needs.
- Fast Deployments and faster modifications with our state of the art software.
- Experienced and innovative team of engineers.
